PC776 - 130 Amp Screw Clamp Automotive Relay

PC776 Description

130 Amp Screw Clamp Automotive Relay PC776 .

PC776 Features

*  130 Amp at 14 VDC Continuous Carry Current at 85°C
*  Max Switching Current of 300 Amps
*  Form 1X Bifurcated Contacts
*  12 and 24 VDC Versions
*  -40°C to 125°C Operating Temperature
*  Class F Insulation System (180°C)
*  RoHS Compliant CONTACT RATINGS 14 VDC at 25

📥 Download Datasheet

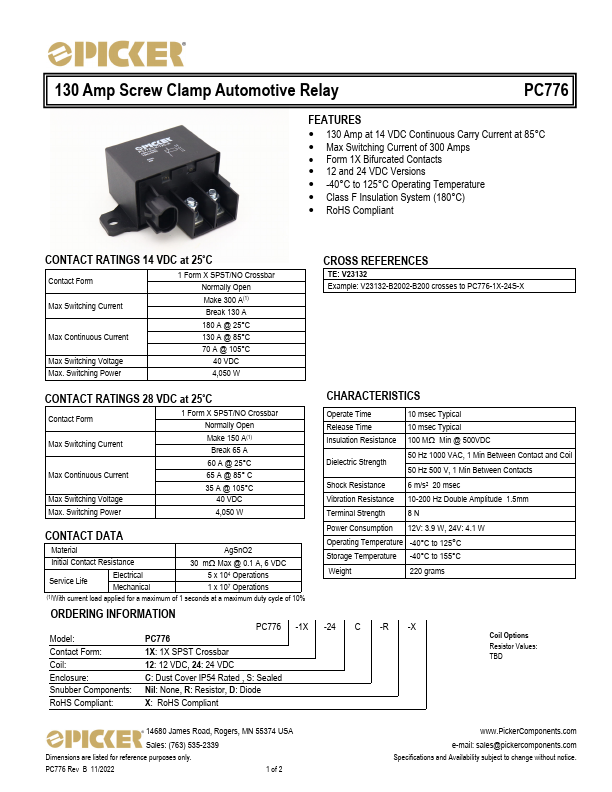

Preview of PC776 PDF

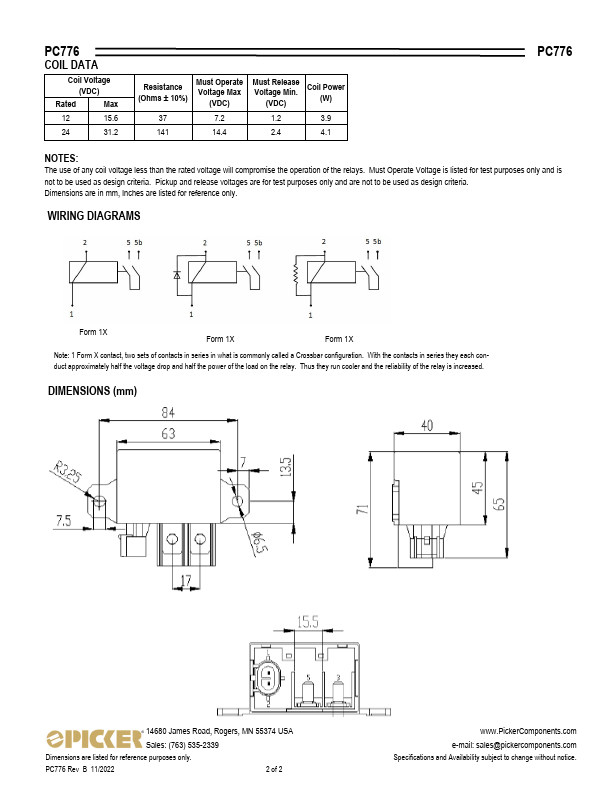

datasheet Preview Page 2

Datasheet Details

Part number
PC776
Manufacturer
Picker
File Size
313.26 KB
Datasheet
PC776-Picker.pdf
Description
130 Amp Screw Clamp Automotive Relay
