PCS41 AC Output Solid State Relay

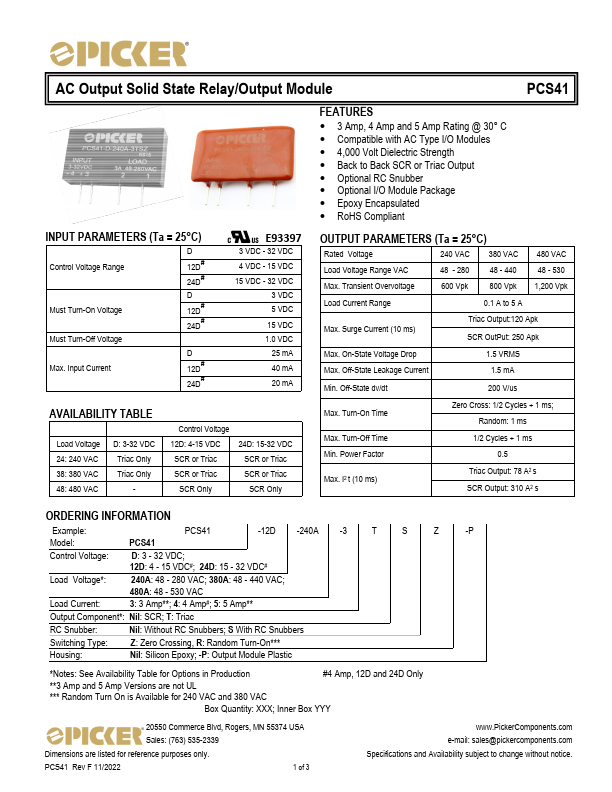

AC Output Solid State Relay/Output Module PCS41 INPUT PARAMETERS (Ta = 25°C) D Control Voltage Range 12D# 24D# Must Turn-On Voltage D 12D# 24D# Must Turn-Off Voltage D Max. Input Current 12D# 24D# E93397 3 VDC - 32 VDC 4 VDC - 15 VDC 15 VDC - 32 VDC 3 VDC 5 VDC 15 VDC 1.0 VDC 25 mA 40 mA 20 mA AVAILABILITY TABLE Load Voltage 24: 240 VAC 38: 380 VAC 48: 480 VAC D: 3-32 VDC Triac Only Triac Only - Control Voltage 12D: 4-15 VDC SCR or Triac SCR or Triac SCR Only 24D: 15-32 VDC SCR.

PCS41 Features

*  3 Amp, 4 Amp and 5 Amp Rating @ 30° C

*  Compatible with AC Type I/O Modules

*  4,000 Volt Dielectric Strength

*  Back to Back SCR or Triac Output

*  Optional RC Snubber

*  Optional I/O Module Package

*  Epoxy Encapsulated

*  RoHS Compliant OUTPUT PARAMETERS (Ta =

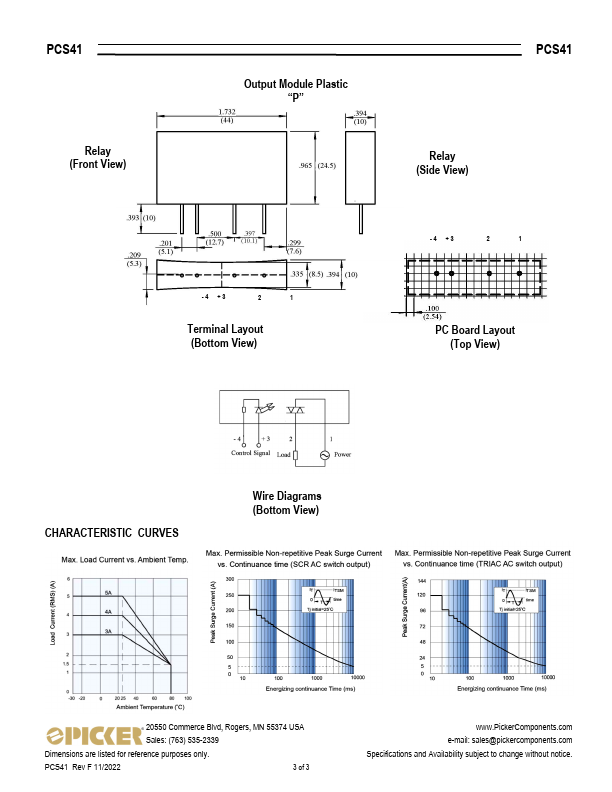

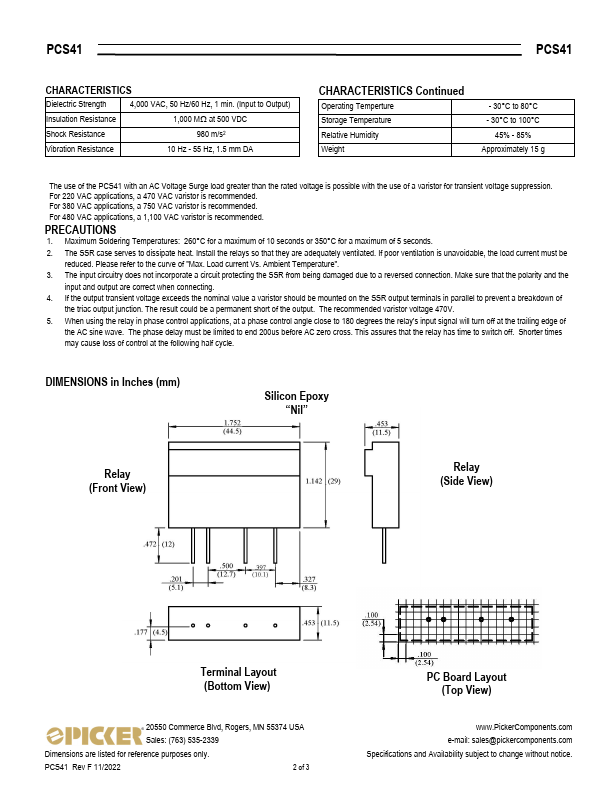

PCS41 Datasheet (796.54 KB)

PCS41 Datasheet Preview — Preview of PCS41 PDF

Datasheet Details

Part number:

PCS41

Manufacturer:

Picker

File Size:

796.54 KB

Description:

Ac output solid state relay.
