PAH8002EP

Low Power Optical Heart Rate Detection Chip

PAH8002EP Features

* Heart rate detection function (HRD)

* SRAM buffer support

* Integrated ultra-low power mode, while in Sleep mode

* Adjustable sleep rate control

* Communication interface options

* I2C

* Four-Wire SPI

* I2C interface up to 1 Mbit/s

* SPI interface up to 2 Mbit/s

PAH8002EP General Description

The PAH8002EP is a low power and high-performance CMOS-process optical chip with three LEDs: two Green and one Infrared, and integrated DSP, targeted as a Heart Rate Detection (HRD) chip. It is based on optical sensing technology that captures higher resolution image than the traditional photodiode..

PAH8002EP Datasheet (1.22 MB)

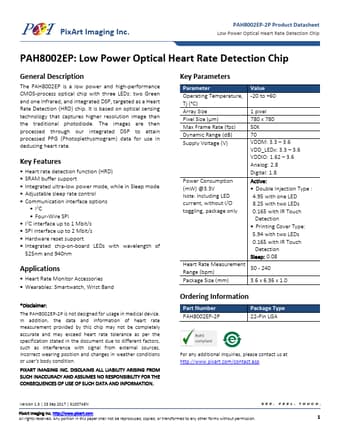

Preview of PAH8002EP PDF

Datasheet Details

Part number:

PAH8002EP

Manufacturer:

PixArt

File Size:

1.22 MB

Description:

Low power optical heart rate detection chip.
PixArt Imaging Inc. PAH8002EP-2P Product Datasheet Low Power Optical Heart Rate Detection Chip PAH8002EP: Low Power Optical Heart Rate Detection Chi.
