PAH8011ES

Low Power Heart Rate Monitor Optical Chip

PAH8011ES Features

* Support HRD, HRV (Heart Rate Variability), exercise functions

* 1596 bytes SRAM buffer

* Integrated ultra-low power mode, while in power- down mode

* Hardware power-down

* Invisible light for touch detection function

* Optical coating for anti-ambient light interference

PAH8011ES General Description

The PAH8011ES is a low power and high-performance CMOS-process optical chip with integrated DSP, targeted as a Heart Rate Detection (HRD) chip. It is based on optical sensing technology that captures higher resolution image than the traditional photodiode. The PAH8011ES could support three external .

PAH8011ES Datasheet (1.12 MB)

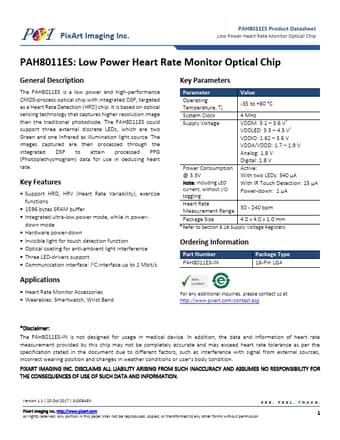

Preview of PAH8011ES PDF

Datasheet Details

Part number:

PAH8011ES

Manufacturer:

PixArt

File Size:

1.12 MB

Description:

Low power heart rate monitor optical chip.
PixArt Imaging Inc. PAH8011ES Product Datasheet Low Power Heart Rate Monitor Optical Chip PAH8011ES: Low Power Heart Rate Monitor Optical Chip Gene.
