PAH8011ET

Low Power Optical Heart Rate Monitor Chip

PAH8011ET Features

* Support heart rate detection function

* SRAM buffer support

* Integrated ultra-low power mode, while in power- down mode

* Hardware power-down support

* Invisible light for touch detection function

* Optical coating resistance ambient light

* Integrated chip-on-board LE

PAH8011ET General Description

The PAH8011ET is a low power CMOS-process optical heart rate monitor chip with integrated DSP that is packaged together with three chip-on-board LEDs: two Green and one Infrared into a single package supporting Heart Rate Detection (HRD) function. It is based on optical sensing technology that captu.

PAH8011ET Datasheet (1.26 MB)

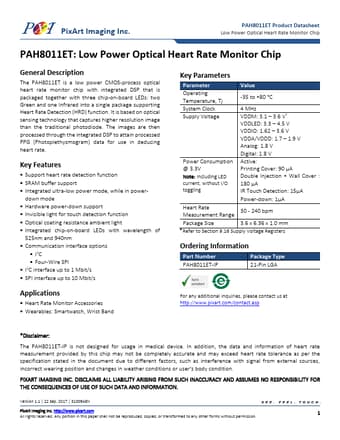

Preview of PAH8011ET PDF

Datasheet Details

Part number:

PAH8011ET

Manufacturer:

PixArt

File Size:

1.26 MB

Description:

Low power optical heart rate monitor chip.
PixArt Imaging Inc. PAH8011ET Product Datasheet Low Power Optical Heart Rate Monitor Chip PAH8011ET: Low Power Optical Heart Rate Monitor Chip Gene.
