PDC3803R - N-Channel MOSFETs

Datasheet Summary

Description

These N-Channel enhancement mode power field effect transistors are using trench DMOS technology.

This advanced technology has been especially tailored to minimize on-state resistance, provide superior switching performance, and withstand high energy pulse in the avalanche and commutation mode.

Features

Improved dv/dt capability.
Fast switching.
100% EAS Guaranteed.
Green Device Available D2.

Potens semiconductor

📥 Download Datasheet

Datasheet Details

Part number	PDC3803R
Manufacturer	Potens semiconductor
File Size	883.32 KB
Description	N-Channel MOSFETs
Datasheet	PDC3803R Datasheet
Additional preview pages of the PDC3803R datasheet.

📁 Similar Datasheet

PDC-10-1+ - Directional Coupler (Mini-Circuits)
PDC0302 - SMD POWER INDUCTORS (Superworld Electronics)
PDC0403 - SMD POWER INDUCTORS (Superworld Electronics)
PDC0502 - SMD POWER INDUCTORS (Superworld Electronics)
PDC0504 - SMD POWER INDUCTORS (Superworld Electronics)
PDC0703 - SMD POWER INDUCTORS (Superworld Electronics)
PDC0705 - SMD POWER INDUCTORS (Superworld Electronics)
PDC0735C - SMD POWER INDUCTORS (Superworld Electronics)
PDC0745C - SMD POWER INDUCTORS (Superworld Electronics)
PDC2 - 32 bit Embedded ASIC Core Peripheral (Atmel)

Other Datasheets by Potens semiconductor

PDC3801R - N-Channel MOSFETs
PDC3806T - Dual N-Channel MOSFETs
PDC3808V - N-Channel MOSFET
PDC3810H - N-Channel MOSFETs
PDC3810V - Dual N-Channel MOSFET
PDC3812V - N-Channel MOSFET
PDC3094X - N-Channel MOSFET
PDC30N15X - N-Channel MOSFETs

Full PDF Text Transcription

Click to expand full text

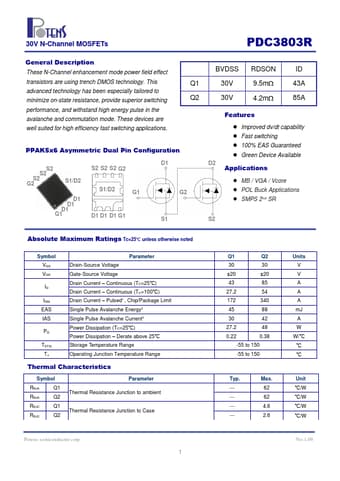

30V N-Channel MOSFETs PDC3803R General Description These N-Channel enhancement mode power field effect transistors are using trench DMOS technology. This advanced technology has been especially tailored to minimize on-state resistance, provide superior switching performance, and withstand high energy pulse in the avalanche and commutation mode. These devices are well suited for high efficiency fast switching applications. Q1 Q2 PPAK5x6 Asymmetric Dual Pin Configuration S2 S2 S2 G2 S1/D2 D1 D1 D1 G1 S2 S2 S2 G2 S1/D2 G1 D1 D1 D1 G1 D1 G2 S1 BVDSS 30V 30V RDSON 9.5m 4.
