PT2203

Primary Side CC/CV Regulator

PT2203 Features

* z z z z z z z z z z z CC and CV Control Without Secondary Feed back Eliminates Compensation Network Built in 650V Power MOSFET Compensates Line Voltage Variation Compensates Inductor Variation in CC mode Compensates Output Cord Resistance Vaux Over Voltage Protection Short Circuit Protection Line Un

PT2203 General Description

The PT2203 is a primary side constant current/current voltage regulator, targeted to applications in less than 5W AC-DC power suppliers. It is designed for the flyback topology, and regulates output current/voltage without the secondary feedback loop. In addition to providing the tight output regula.

PT2203 Datasheet (280.62 KB)

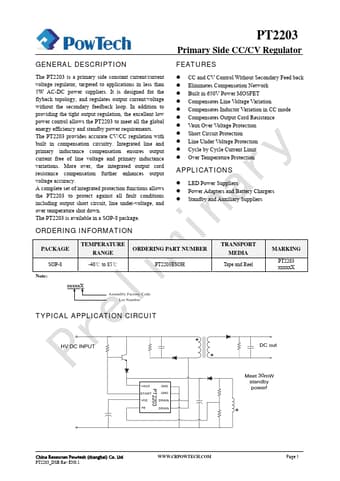

Preview of PT2203 PDF

Datasheet Details

Part number:

PT2203

Manufacturer:

PowTech

File Size:

280.62 KB

Description:

Primary side cc/cv regulator.
