PT2212

Infrared Remote Control Transmitter

Princeton Technology Corp

PT2212 Features

* CMOS technology

* Low power consumption

* Least external components

* Low voltage operation

* Double key operation

* Up to 32 function keys provided

* Up to 8 system codes

* Up to 256 command codes

* High efficiency transmissi

PT2212 General Description

PT2212 is a remote control transmitter utilizing CMOS Technology specially designed for infrared remote control applications. PT2212 can support up to 256 command codes and is functionally compatible with TC9012. Pin assignments and application circuit are optimized for easy PCB Layout and low cost .

PT2212 Datasheet (406.32 KB)

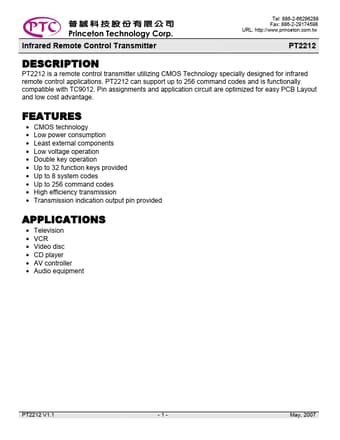

PT2212 Datasheet Preview — Preview of PT2212 PDF

Datasheet Details

Part number:

PT2212

Manufacturer:

Princeton Technology Corp

File Size:

406.32 KB

Description:

Infrared remote control transmitter.
