PT2210 Datasheet - Princeton Technology Corp

PT2210 - Infrared Remote Control Transmitter

PT2210 is a remote control transmitter utilizing CMOS Technology specially designed for use on general purpose (RC-5) infrared applications with low voltage supply and large debounce time.

It is compatible with SAA3010.

PT2210 supports 32 systems.

Each system has a maximum of 64 commands; thus, PT22

PT2210 Features

* ❒ CMOS Technology ❒ Low Voltage Supply ❒ Supports up to 32 Systems ❒ Single Pin Oscillator ❒ Bi-phase Transmission Technique ❒ Provides 2,048 Commands Applications ❒ Television ❒ VCR ❒ Audio Equipment ❒ Multi-Media System ❒ Personal Computer Tel : 886-2-29162151 Princeton Technology Corp. Fax :

PT2210_PrincetonTechnologyCorp.pdf

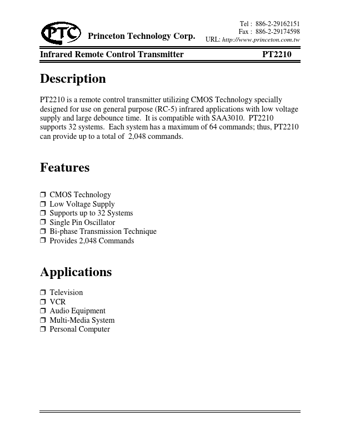

Preview of PT2210 PDF
PT2210 Datasheet Preview Page 2 PT2210 Datasheet Preview Page 3

Datasheet Details

Part number:

PT2210

Manufacturer:

Princeton Technology Corp

File Size:

302.68 KB

Description:

Infrared remote control transmitter.
