PAM2421 Datasheet - Power Analog Micoelectronics

PWM STEP-UP DC-DC CONVERTER

PAM2421 Features

* Greater than 90% Efficiency

* Adjustable Output Voltage Up to 24V

* Internal 24V Power MOSFET

* Peak Current 3A,4.5A,5.5A

* 520kHz Frequency

* Built-in Over-Voltage Protection (OVP)

* Open Protection

* Programmable Soft-Start Function

* Thermal Shutdowns

* U

PAM2421 General Description

The PAM242x devices are high-performance, fixed frequency, current-mode PWM step-up DC/DC converters that incorporate internal power MOSFETs. The PAM242x includes an integrated power MOSFET that supports peak currents of up to 3A/4.5A/5.5A. The PAM242x utilizes simple external loop compensation allo.

PAM2421 Datasheet (323.56 KB)

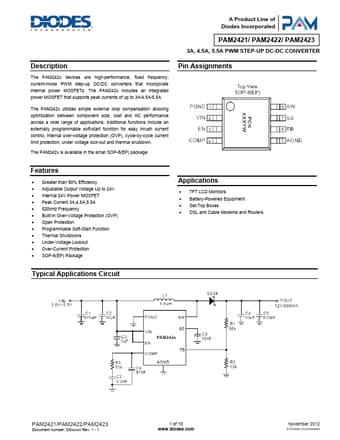

PAM2421 Datasheet Preview — Preview of PAM2421 PDF

Datasheet Details

Part number:

PAM2421

Manufacturer:

Power Analog Micoelectronics

File Size:

323.56 KB

Description:

Pwm step-up dc-dc converter.
