PAM2422, PAM2421 - PWM STEP-UP DC-DC CONVERTER

Power Analog Micoelectronics

📥 Download Datasheet

PAM2422 Datasheet Preview — This datasheet PDF includes multiple part numbers: PAM2422, PAM2421. Please refer to the document for exact specifications by model.

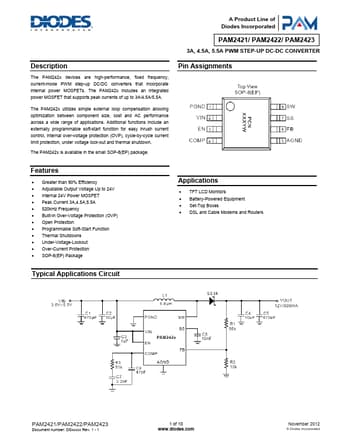

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	PAM2422, PAM2421
Manufacturer	Power Analog Micoelectronics
File Size	323.56 KB
Description	PWM STEP-UP DC-DC CONVERTER
Datasheet	PAM2421-PowerAnalogMicoelectronics.pdf
Note	This datasheet PDF includes multiple part numbers: PAM2422, PAM2421. Please refer to the document for exact specifications by model.

PAM2422 Product details

Description

The PAM242x devices are high-performance, fixed frequency, current-mode PWM step-up DC/DC converters that incorporate internal power MOSFETs.

Features

Greater than 90% Efficiency.
Adjustable Output Voltage Up to 24V.
Internal 24V Power MOSFET.
Peak Current 3A,4.5A,5.5A.
520kHz Frequency.
Built-in Over-Voltage Protection (OVP).
Open Protection.
Programmable Soft-Start Function.
Thermal Shutdowns.
Under-Voltage-Lockout.
Over-Current Protection.
SOP-8(EP) Package.
