PAM2801 - 1W High Power White LED Driver

Datasheet Summary

Features

  • n LED Power Efficiency: up to 90% n LED Current Accuracy: ± 3%(V IN=3.2V to 1.1 V @V F=3.4V) n Low Start-Up Voltage: 0.9V(I LED=243mA) n Low Hold Voltage:0.65V(I LED=95mA) n Internal 2A MOSFET Switch n 1.0MHz Switching Frequency n Uses Small,Low Profile External Components n Low R DS(ON): 100mΩ (TYP. ) n Open LED Protection n Over Temperature Protection n Low Profile SOT-23 Package n Pb-Free Package General Descriptio n The PAM2801 is a step-up DC-DC converter that delivers a regulated output cu.

📥 Download Datasheet

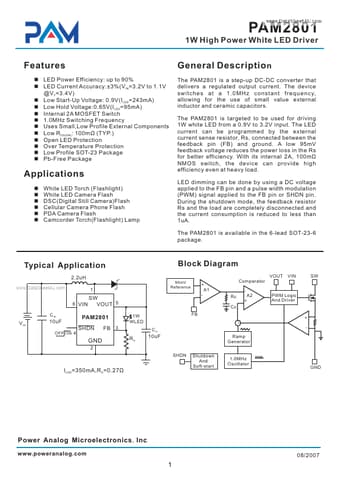

Datasheet preview – PAM2801

Datasheet Details

Part number PAM2801
Manufacturer Power Analog Micoelectronics
File Size 302.21 KB
Description 1W High Power White LED Driver
Datasheet download datasheet PAM2801 Datasheet
Additional preview pages of the PAM2801 datasheet.

📁 Similar Datasheet

  • PAM2800 - HIGH POWER WHITE LED DRIVER (Diodes)
  • PAM2803 - 3W HIGH POWER WHITE LED DRIVER (Diodes)
  • PAM2804 - HIGH EFFICIENCY LED DRIVER (Diodes)
  • PAM2805 - 3-MODES / 3W WLED DRIVER (Diodes)
  • PAM2808 - 5W HIGH POWER HBLED DRIVER (Diodes)
  • PAM2841 - 40V PRECISION WLED DRIVER (Diodes)
  • PAM2842 - HIGH POWER LED DRIVER (Diodes)
  • PAM2861 - 1A LED DRIVER (Diodes)
  • PAM2863 - 2A LED DRIVER (Diodes)
  • PAM28DOAC100A - 400 Watt TVS Component (ProTek Devices)
Other Datasheets by Power Analog Micoelectronics
  • PAM2800 - High Power White LED Driver
  • PAM2803 - 3W High Power White LED Driver
  • PAM2810 - 4-Channel Programmable LED Current Sink
  • PAM2842 - High Power LED Driver
  • PAM2845 - 40V High Power Boost Convertor
  • PAM2846 - Integrated 6 String LED Boost Type Driver
  • PAM2861 - 1A LED DRIVER
  • PAM2863 - 2A LED Driver

Full PDF Text Transcription

Click to expand full text
1W High Power White LED Driver PAM2801 Features n LED Power Efficiency: up to 90% n LED Current Accuracy: ± 3%(V IN=3.2V to 1.1 V @V F=3.4V) n Low Start-Up Voltage: 0.9V(I LED=243mA) n Low Hold Voltage:0.65V(I LED=95mA) n Internal 2A MOSFET Switch n 1.0MHz Switching Frequency n Uses Small,Low Profile External Components n Low R DS(ON): 100mΩ (TYP.) n Open LED Protection n Over Temperature Protection n Low Profile SOT-23 Package n Pb-Free Package General Descriptio n The PAM2801 is a step-up DC-DC converter that delivers a regulated output current. The device switches at a 1.0MHz constant frequency, allowing for the use of small value external inductor and ceramic capacitors. The PAM2801 is targeted to be used for driving 1W white LED from a 0.9V to 3.2V input.
