PAM2810 - 4-Channel Programmable LED Current Sink

Datasheet Summary

Description

The PAM2810 provides 4 regulated current sinks, capable of sinking up to 40mA current to accommodate 4 white LEDs.

It requires no charge pump, has no noise and EMI, and significantly improves the efficiency in Li bettery range.

LED brightness can be controlled by PWM techniques.

Features

  • n n n n n.

📥 Download Datasheet

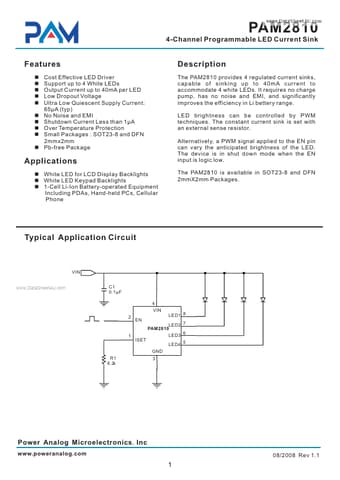

Datasheet preview – PAM2810

Datasheet Details

Part number PAM2810
Manufacturer Power Analog Micoelectronics
File Size 196.80 KB
Description 4-Channel Programmable LED Current Sink
Datasheet download datasheet PAM2810 Datasheet
