PAM2800 - HIGH POWER WHITE LED DRIVER

Datasheet Summary

Description

The PAM2800 is a high-power white LED driver with 350mA constant rated source current.

Features

  • high-efficiency and low quiescent current, making it ideal for battery-powered.

📥 Download Datasheet

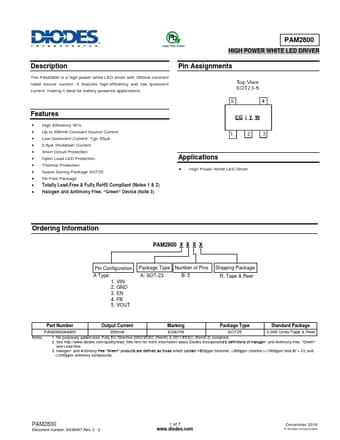

Datasheet preview – PAM2800

Datasheet Details

Part number PAM2800
Manufacturer DIODES
File Size 276.37 KB
Description HIGH POWER WHITE LED DRIVER
Datasheet download datasheet PAM2800 Datasheet
