PAM28DOAC100A, PAM28DOAC5.0A - 400 Watt TVS Component

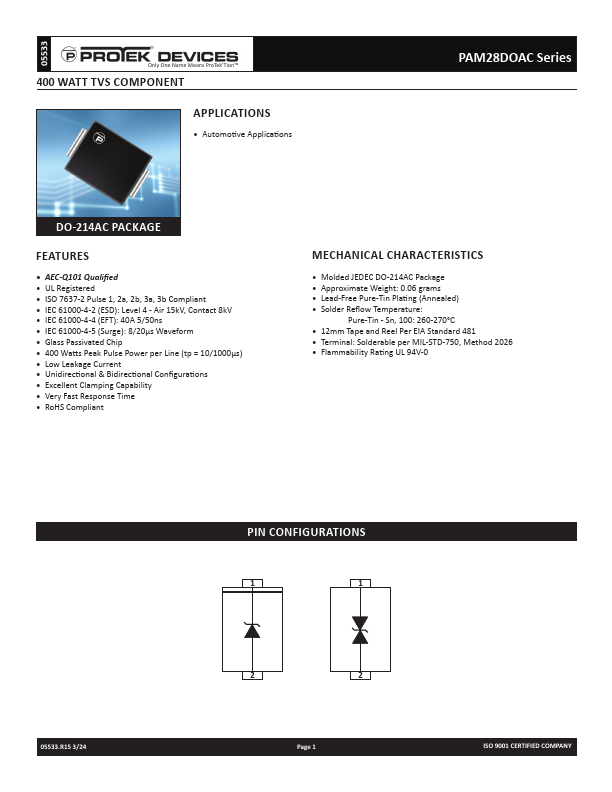

PAM28DOAC100A Description

05533 Only One Name Means ProTek’Tion™ 400 Watt TVS Component applications * Automotive Applications PAM28DOAC Series DO-214ac package Feat.

PAM28DOAC100A Features

* AEC-Q101 Qualified
* UL Registered
* ISO 7637-2 Pulse 1, 2a, 2b, 3a, 3b Compliant
* IEC 61000-4-2 (ESD): Level 4 - Air 15kV, Contact 8kV
* IEC 61000-4-4 (EFT): 40A 5/50ns
* IEC 61000-4-5 (Surge): 8/20µs Waveform
* Glass Passivated Chip

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: PAM28DOAC100A, PAM28DOAC5.0A. Please refer to the document for exact specifications by model.

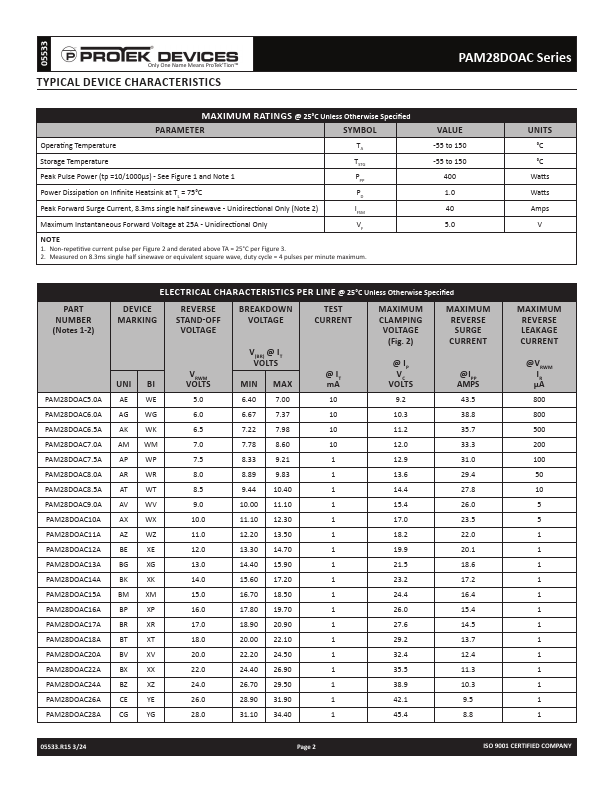

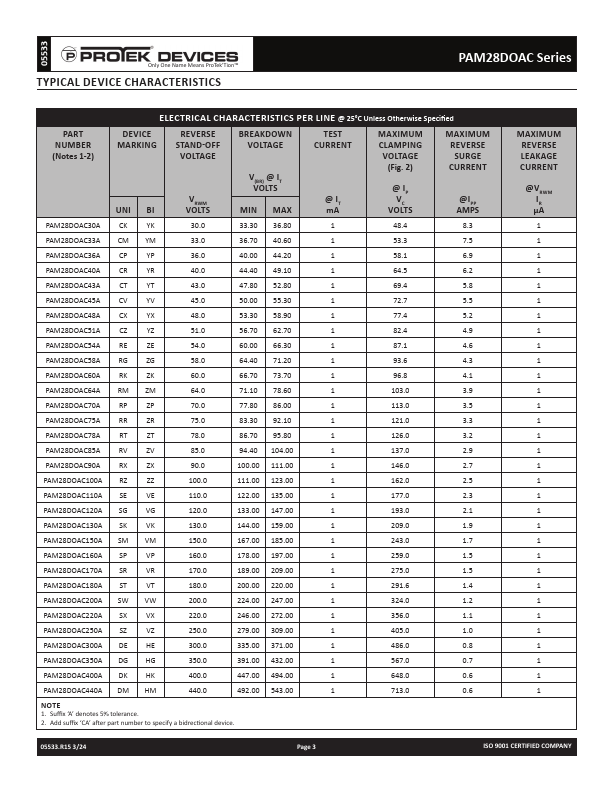

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
PAM28DOAC100A, PAM28DOAC5.0A
Manufacturer
ProTek Devices
File Size
515.21 KB
Datasheet
PAM28DOAC5.0A-ProTekDevices.pdf
Description
400 Watt TVS Component
Note
This datasheet PDF includes multiple part numbers: PAM28DOAC100A, PAM28DOAC5.0A.
Please refer to the document for exact specifications by model.
