TIC266 Datasheet - Power Innovations Limited

TIC266 SILICON TRIACS

TIC266 SERIES SILICON TRIACS Copyright © 1997, Power Innovations Limited, UK JULY 1991 - REVISED MARCH 1997 q q q q q q High Current Triacs 25 A RMS Glass Passivated Wafer 400 V to 800 V Off-State Voltage 175 A Peak Current Max IGT of 50 mA (Quadrants 1 - 3) Pin 2 is in electrical contact with the mounting base. MDC2ACA TO-220 PACKAGE (TOP VIEW) MT1 MT2 G 1 2 3 absolute maximum ratings over operating case temperature (unless otherwise noted) RATING TIC266D Repetitive peak off-state voltage.

TIC266 Datasheet (99.48 KB)

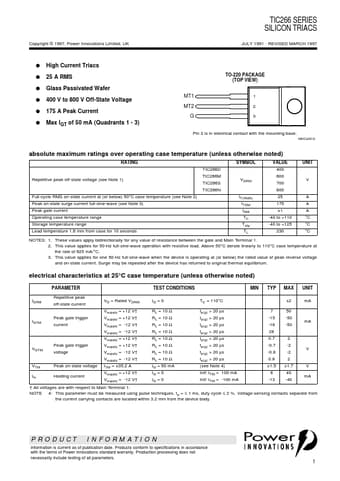

Preview of TIC266 PDF

Datasheet Details

Part number:

TIC266

Manufacturer:

Power Innovations Limited

File Size:

99.48 KB

Description:

Silicon triacs.
