INT100 Datasheet - Power Integrations Inc.

INT100 - Low-Side and High-side Drive with Simultaneous Conduction Lockout

The INT100 half-bridge driver IC provides gate drive for external low-side and high-side MOSFET switches.

The INT100 provides a simple, cost-effective interface between low-voltage control logic and high-voltage loads.

The INT100 is designed to be used with rectified 110 V or 220 V supplies.

Both hi

INT100 Half-Bridge Driver IC Low-Side and High-side Drive with Simultaneous Conduction Lockout Product Highlights 5 V CMOS Compatible Control Inputs Combines logic inputs for low and high-side drives Schmidt-triggered inputs for noise immunity Built-in High-voltage Level Shifters Can withstand up to 800 V for direct interface to the HVreferenced high-side switch Pulsed internal high-voltage level shifters reduce power consumption Gate Drive Outputs for Ext

INT100_PowerIntegrationsInc..pdf

Preview of INT100 PDF

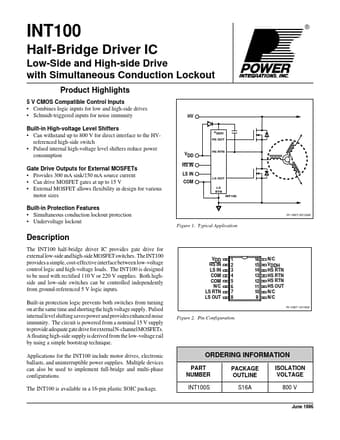

INT100 Datasheet Preview Page 2 INT100 Datasheet Preview Page 3

Datasheet Details

Part number:

INT100

Manufacturer:

Power Integrations Inc.

File Size:

94.39 KB

Description:

Low-side and high-side drive with simultaneous conduction lockout.
