INT5130

Integrated Powerline MAC/PHY Transceiver

INT5130 Features

* Single-chip powerline networking controller with IEEE802.3u MII interface Implements Intellon’s PowerPacket™ technology which is fully compliant with the HomePlug Powerline Alliance Industry Specification v1.0 General purpose 8-wire serial PHY data interface Selectable MDI/SPI PHY manage

INT5130 General Description

The INT5130 IC is an integrated powerline MAC/PHY transceiver providing No New WiresTM communications to any room, over any wire, at speeds of up to 14 Mbps. The INT5130 provides the ability to select between a complete Media Independent Interface (MII) or a reduced General Purpose Serial Interface .

INT5130 Datasheet (1.26 MB)

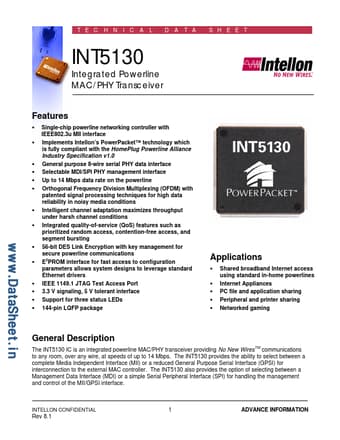

Preview of INT5130 PDF

Datasheet Details

Part number:

INT5130

Manufacturer:

Intellon

File Size:

1.26 MB

Description:

Integrated powerline mac/phy transceiver.
