INT5500 DELEGATE CONTROLLER INTERFACE

The Delegate Controller Interface INT5500 allows connection of 4 delegate microphone units and 4 delegate channel selectors, voting panels or loudspeaker panels. The controller interfaces are connected to the central unit in daisy chain. Replacement of a defective interface can be effected without s.

Data Sheet conference TCS5500 INT5500 DELEGATE CONTROLLER INTERFACE Art. 71.67.5046 Connectivity Four 10-pin RJ connectors for microphone units DML5500/CML5500 Four 8-pin shielded RJ connectors for delegate channel selectors, loudspeakers LS5500 or for voting panels Two 8-pin RJ connectors for the TMS digital data bus Accessories Digital bus cable YPC to interconnect Delegate Controller Interfaces and to connect to the central unit YPC1 YPC2 YPC.

INT5500 Datasheet (358.99 KB)

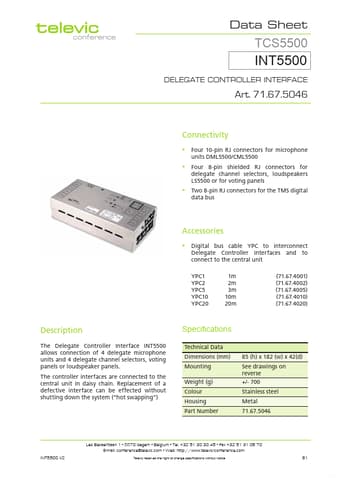

INT5500 Datasheet Preview — Preview of INT5500 PDF

Datasheet Details

Part number:

INT5500

Manufacturer:

Televic

File Size:

358.99 KB

Description:

Delegate controller interface.
