INT100S

Low-Side and High-side Drive with Simultaneous Conduction Lockout

INT100S Features

* Simultaneous conduction lockout protection

* Undervoltage lockout ® HV VDDH HS OUT VDD HS IN LS IN HS RTN LS OUT COM LS RTN INT100 PI-1807-031296 Figure 1. Typical Application Description The INT100 half-bridge driver IC provides gate drive for external low-side and high

INT100S General Description

The INT100 half-bridge driver IC provides gate drive for external low-side and high-side MOSFET switches. The INT100 provides a simple, cost-effective interface between low-voltage control logic and high-voltage loads. The INT100 is designed to be used with rectified 110 V or 220 V supplies. Both hi.

INT100S Datasheet (94.39 KB)

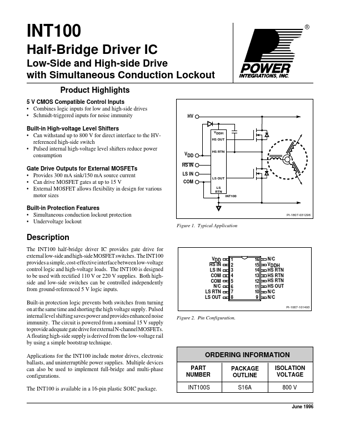

Preview of INT100S PDF

Datasheet Details

Part number:

INT100S

Manufacturer:

Power Integrations Inc.

File Size:

94.39 KB

Description:

Low-side and high-side drive with simultaneous conduction lockout.
INT100 Half-Bridge Driver IC Low-Side and High-side Drive with Simultaneous Conduction Lockout Product Highlights 5 V CMOS Compatible Control Inputs <.
