TOP210PFI

Three-terminal Off-line PWM Switch

TOP210PFI Features

* Auto-restart and cycle by cycle current limiting functions handle both primary and secondary faults

* On-chip thermal shutdown with hysteresis protects the entire system against overload ® + Wide-Range DC Input TOPSwitch - D CONTROL C S PI-2043-052397 Figure 1. Typical Appli

TOP210PFI General Description

The TOP209/210 implements all functions necessary for an off-line switched mode control system: high voltage N-channel power MOSFET with controlled turn-on gate driver, voltage mode PWM controller with integrated oscillator, high voltage start-up bias circuit, bandgap derived reference, bias shunt r.

TOP210PFI Datasheet (446.80 KB)

Preview of TOP210PFI PDF

Datasheet Details

Part number:

TOP210PFI

Manufacturer:

Power Integrations Inc.

File Size:

446.80 KB

Description:

Three-terminal off-line pwm switch.

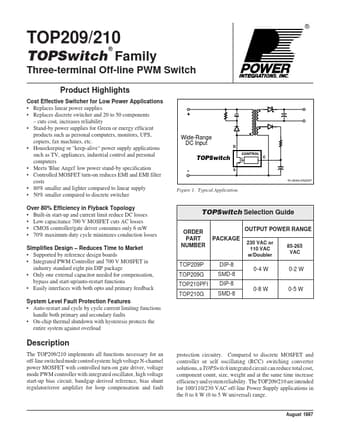

® TOP209/210 TOPSwitch Family Three-terminal Off-line PWM Switch Product Highlights Cost Effective Switcher for Low Power Applications

* Repl.
