LNK3202 Datasheet - Power Integrations

LNK3202 - Highly Energy Efficient Off-line Switcher IC

LNK3202/3204-6, LNK3294 & LNK3296 LinkSwitch-TN2 Family Highly Energy Efficient Off-line Switcher IC with Integrated System Level Protection for Low Component-Count Power Supplies Product Highlights Highest Performance and Design Flexibility Supports buck, buck-boost and flyback topologies Excellent load and line regulation Selectable device current limit 66 kHz operation with accurate current limit Allows the use of low-cost off-the-shelf

LNK3202 Features

* Auto-restart for short-circuit and open loop faults

* Output overvoltage protection (OVP)

* Line input overvoltage protection (OVL)

* Hysteretic over-temperature protection (OTP)

* Extended creepage between DRAIN pin and all other pins improves field re

LNK3202-PowerIntegrations.pdf

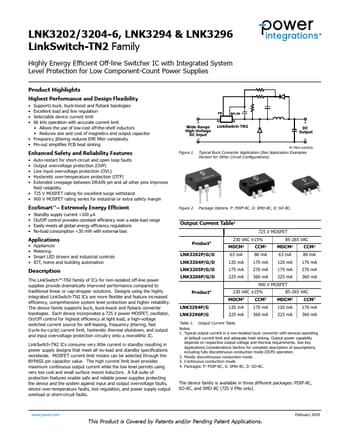

Preview of LNK3202 PDF
LNK3202 Datasheet Preview Page 2 LNK3202 Datasheet Preview Page 3

Datasheet Details

Part number:

LNK3202

Manufacturer:

Power Integrations

File Size:

2.08 MB

Description:

Highly energy efficient off-line switcher ic.
