AM1601-9R, AM1001-9R-Power 50 Watt DC-DC and AC-DC Converters

AM1601-9R Description

® 39 1.54" 8 TE 111 4.37" 3U 168 6.6" M Series Data Sheet 50 Watt DC-DC and AC-DC Converters .
The M Series of DC-DC and AC-DC converters represents a broad and flexible range of power supplies for use in advanced industrial electronic systems.

AM1601-9R Features

* Extremly wide operating input voltage ranges from 8 to 385 VDC and 85 to 264 VAC, 47 to 440 Hz
* RoHS lead-solder exemption compliant
* Class I equipment
* Input over- and undervoltage lockout
* 1, 2, or 3 individually isolated and controlled outputs up to 6

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: AM1601-9R, AM1001-9R-Power. Please refer to the document for exact specifications by model.

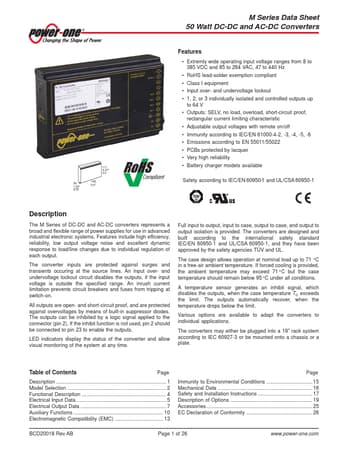

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AM1601-9R, AM1001-9R-Power
Manufacturer
Power-One
File Size
725.95 KB
Datasheet
AM1001-9R-Power-One.pdf
Description
50 Watt DC-DC and AC-DC Converters
Note
This datasheet PDF includes multiple part numbers: AM1601-9R, AM1001-9R-Power.
Please refer to the document for exact specifications by model.
