AM1 - High Dynamic Range Gain Block

Datasheet Summary

Description

The AM1 is a general-purpose gain block that offers good dynamic range and low noise figure in a low-cost surfacemount package.

The combination of near-constant OIP3 and low noise figure performance over frequency makes it attractive for both narrowband and broadband applications.

Features

  • x x x x x x x 60.
  • 3000 MHz 14 dB Gain 2.4 dB Noise Figure +39 dBm OIP3 Single +3.3 or +4.5 Supply Internally matched to 50 : Lead-free/Green/RoHScompliant SOT-89 Package x MTTF > 1000 years Product.

📥 Download Datasheet

Datasheet preview – AM1

Datasheet Details

Part number AM1
Manufacturer WJ Communication
File Size 430.35 KB
Description High Dynamic Range Gain Block
Datasheet download datasheet AM1 Datasheet
Additional preview pages of the AM1 datasheet.

📁 Similar Datasheet

  • AM1 - High Dynamic Range Gain Block (TriQuint Semiconductor)
  • AM1 - Tube (Philips)
  • AM100 - 1.0 AMPERE SILICON MINIATURE SINGLE-PHASE BRIDGES (PAN JIT)
  • AM100 - 1.0 TO 1.5 AMPERE SILICON MINIATURE SINGLE-PHASE BRIDGE (TRSYS)
  • AM100 - Silicon Miniature Single-Phase Bridge (Comchip Technology)
  • AM100 - magnetic resistance angle sensor (Alfa Electronics)
  • AM100-G - Silicon Miniature Single-Phase Bridge (Comchip Technology)
  • AM1000 - silicon N-channel high speed analog switch (National Semiconductor)
  • AM1001 - silicon N-channel high speed analog switch (National Semiconductor)
  • AM1001 - Temperature and Humidity Module Sensors (AOSONG)
Other Datasheets by WJ Communication

    Full PDF Text Transcription

    Click to expand full text

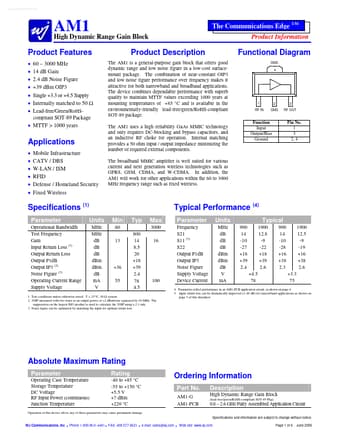

    www.DataSheet4U.com High Dynamic Range Gain Block AM1 The Communications Edge TM Product Information Product Features x x x x x x x 60 – 3000 MHz 14 dB Gain 2.4 dB Noise Figure +39 dBm OIP3 Single +3.3 or +4.5 Supply Internally matched to 50 : Lead-free/Green/RoHScompliant SOT-89 Package x MTTF > 1000 years Product Description The AM1 is a general-purpose gain block that offers good dynamic range and low noise figure in a low-cost surfacemount package. The combination of near-constant OIP3 and low noise figure performance over frequency makes it attractive for both narrowband and broadband applications.
