AM100 - 1.0 AMPERE SILICON MINIATURE SINGLE-PHASE BRIDGES

Datasheet Summary

Features

  • Ratings to 1000V PRV.
  • Surge overload rating: 30 Amperes peak.
  • Ideal for printed circuit board.
  • Reliable low cost construction utilizing molded plastic technique.
  • Mounting position:Any .217(5.5) .197(5.0) AM .370(9.4) .358(9.1) Unit: inch ( mm ) 1.0(25.4) MIN . .128210((4.5.66)) 1.2(30.5) MIN.

📥 Download Datasheet

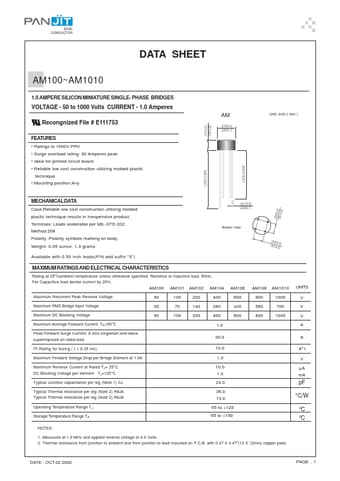

Datasheet preview – AM100

Datasheet Details

Part number AM100
Manufacturer PAN JIT
File Size 39.35 KB
Description 1.0 AMPERE SILICON MINIATURE SINGLE-PHASE BRIDGES
Datasheet download datasheet AM100 Datasheet
Additional preview pages of the AM100 datasheet.

📁 Similar Datasheet

  • AM100 - 1.0 TO 1.5 AMPERE SILICON MINIATURE SINGLE-PHASE BRIDGE (TRSYS)
  • AM100 - Silicon Miniature Single-Phase Bridge (Comchip Technology)
  • AM100 - magnetic resistance angle sensor (Alfa Electronics)
  • AM100-G - Silicon Miniature Single-Phase Bridge (Comchip Technology)
  • AM1000 - silicon N-channel high speed analog switch (National Semiconductor)
  • AM1001 - silicon N-channel high speed analog switch (National Semiconductor)
  • AM1001 - Temperature and Humidity Module Sensors (AOSONG)
  • AM1001-7R - 50 Watt DC-DC Converters (Power-One)
  • AM1001-9R - 50 Watt DC-DC and AC-DC Converters (Power-One)
  • AM1002 - silicon N-channel high speed analog switch (National Semiconductor)
Other Datasheets by PAN JIT
  • AM101 - 1.0 AMPERE SILICON MINIATURE SINGLE-PHASE BRIDGES
  • AM1010 - 1.0 AMPERE SILICON MINIATURE SINGLE-PHASE BRIDGES
  • AM102 - 1.0 AMPERE SILICON MINIATURE SINGLE-PHASE BRIDGES
  • AM104 - 1.0 AMPERE SILICON MINIATURE SINGLE-PHASE BRIDGES
  • AM106 - 1.0 AMPERE SILICON MINIATURE SINGLE-PHASE BRIDGES
  • AM108 - 1.0 AMPERE SILICON MINIATURE SINGLE-PHASE BRIDGES

Full PDF Text Transcription

Click to expand full text
DATA SHEET AM100~AM1010 1.0 AMPERE SILICON MINIATURE SINGLE- PHASE BRIDGES VOLTAGE - 50 to 1000 Volts CURRENT - 1.0 Amperes Recongnized File # E111753 FEATURES • Ratings to 1000V PRV • Surge overload rating: 30 Amperes peak • Ideal for printed circuit board • Reliable low cost construction utilizing molded plastic technique • Mounting position:Any .217(5.5) .197(5.0) AM .370(9.4) .358(9.1) Unit: inch ( mm ) 1.0(25.4) MIN . .128210((4.5.66)) 1.2(30.5) MIN MECHANICALDATA Case:Reliable low cost construction utilizing molded plastic technique results in inexpensive product. Terminals: Leads solderable per MIL-STD-202, Method 208 Polarity :Polarity symbols marking on body. Weight: 0.05 ounce, 1.3 grams Available with 0.50 inch leads(P/N add suffix ”S”) .031(0.8) .028(0.7) Bottom View .
