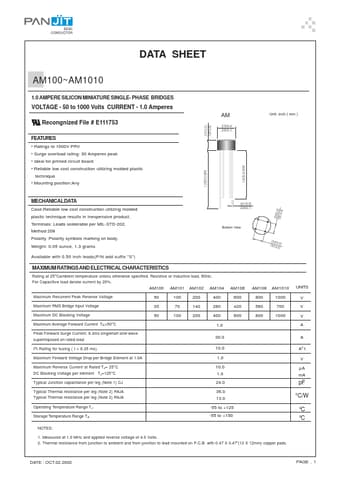

AM106, AM100 - 1.0 AMPERE SILICON MINIATURE SINGLE-PHASE BRIDGES

PAN JIT

Datasheet Details

Part number: AM106, AM100
Manufacturer: PAN JIT
File Size: 39.35 KB
Datasheet: AM100-PANJIT.pdf
Description: 1.0 AMPERE SILICON MINIATURE SINGLE-PHASE BRIDGES
Note: This datasheet PDF includes multiple part numbers: AM106, AM100.
Please refer to the document for exact specifications by model.

Ratings to 1000V PRV.
Surge overload rating: 30 Amperes peak.
Ideal for printed circuit board.
Reliable low cost construction utilizing molded plastic technique.
Mounting position:Any .217(5.5) .197(5.0) AM .370(9.4) .358(9.1) Unit: inch ( mm ) 1.0(25.4) MIN . .128210((4.5.66)) 1.2(30.5) MIN.
