AM1010

1.0 AMPERE SILICON MINIATURE SINGLE-PHASE BRIDGES

AM1010 Features

* Ratings to 1000V PRV

* Surge overload rating: 30 Amperes peak

* Ideal for printed circuit board

* Reliable low cost construction utilizing molded plastic technique

* Mounting position:Any .217(5.5) .197(5.0) AM .370(9.4) .358(9.1) Unit: inch ( mm ) 1.0(2

AM1010 Datasheet (39.35 KB)

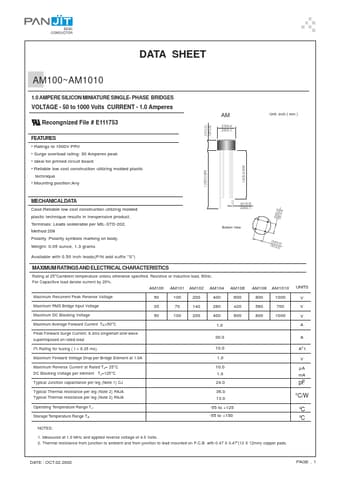

Preview of AM1010 PDF

Datasheet Details

Part number:

AM1010

Manufacturer:

PAN JIT

File Size:

39.35 KB

Description:

1.0 ampere silicon miniature single-phase bridges.
DATA SHEET AM100~AM1010 1.0 AMPERE SILICON MINIATURE SINGLE- PHASE BRIDGES VOLTAGE - 50 to 1000 Volts CURRENT - 1.0 Amperes Recongnized File # E11175.
