AM1010-G, AM100-G - Silicon Miniature Single-Phase Bridge

AM1010-G Description

Silicon Miniature Single-Phase Bridge AM100-G/150-G thru AM1010-G/1510-G Voltage: 50 ~ 1000 Volts Current: 1.0 ~ 1.5 Amp .

AM1010-G Features

* Ratings to 1000V PRV Surge overloadrating - 30/50 amperes peak Ideal for printed circuited board Reliable construction utilizing molded plastic Mounting position: Any .217 (5.5) .197 (5.0) 1.2MIN (30.5) 1.0MIN (25.4) AM .358 (9.1) MAX Mechanical Data: Case: Reliable low cost construction utilizi

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: AM1010-G, AM100-G. Please refer to the document for exact specifications by model.

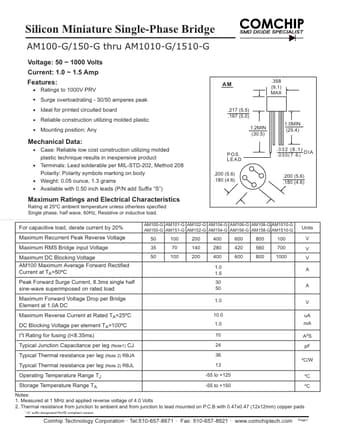

datasheet Preview Page 2

Datasheet Details

Part number
AM1010-G, AM100-G
Manufacturer
Comchip Technology
File Size
80.07 KB
Datasheet
AM100-G_ComchipTechnology.pdf
Description
Silicon Miniature Single-Phase Bridge
Note
This datasheet PDF includes multiple part numbers: AM1010-G, AM100-G.
Please refer to the document for exact specifications by model.
