AM1010 - 1.0 TO 1.5 AMPERE SILICON MINIATURE SINGLE-PHASE BRIDGE

Datasheet Summary

Features

l Ratings to 1000V PRV l Surge overload rating.
30/50 amperes peak l Ideal for printed circuit board l Reliable construction utilizing molded plastic l Mounting position: Any.

TRSYS

📥 Download Datasheet

Datasheet Details

Part number	AM1010
Manufacturer	TRSYS
File Size	108.54 KB
Description	1.0 TO 1.5 AMPERE SILICON MINIATURE SINGLE-PHASE BRIDGE
Datasheet	AM1010 Datasheet
Additional preview pages of the AM1010 datasheet.

📁 Similar Datasheet

AM1010 - Silicon Miniature Single-Phase Bridge (Comchip Technology)
AM1010 - 1.0 AMPERE SILICON MINIATURE SINGLE-PHASE BRIDGES (PAN JIT)
AM1010-G - Silicon Miniature Single-Phase Bridge (Comchip Technology)
AM1010N - 100V N-Channel MOSFET (AXElite)
AM101 - 1.0 AMPERE SILICON MINIATURE SINGLE-PHASE BRIDGES (PAN JIT)
AM101 - Silicon Miniature Single-Phase Bridge (Comchip Technology)
AM1011-070 - RF & MICROWAVE TRANSISTORS L-BAND AVIONICS APPLICATIONS (STMicroelectronics)
AM1011-075 - L-BAND AVIONICS APPLICATIONS RF & MICROWAVE TRANSISTORS (STMicroelectronics)
AM1011-300 - RF & MICROWAVE TRANSISTORS AVIONICS APPLICATIONS (STMicroelectronics)
AM1011-400 - L-BAND AVIONICS APPLICATIONS RF & MICROWAVE TRANSISTORS (STMicroelectronics)

Other Datasheets by TRSYS

AM101 - 1.0 TO 1.5 AMPERE SILICON MINIATURE SINGLE-PHASE BRIDGE
AM100 - 1.0 TO 1.5 AMPERE SILICON MINIATURE SINGLE-PHASE BRIDGE
AM102 - 1.0 TO 1.5 AMPERE SILICON MINIATURE SINGLE-PHASE BRIDGE
AM104 - 1.0 TO 1.5 AMPERE SILICON MINIATURE SINGLE-PHASE BRIDGE
AM106 - 1.0 TO 1.5 AMPERE SILICON MINIATURE SINGLE-PHASE BRIDGE
AM108 - 1.0 TO 1.5 AMPERE SILICON MINIATURE SINGLE-PHASE BRIDGE
AM150 - 1.0 TO 1.5 AMPERE SILICON MINIATURE SINGLE-PHASE BRIDGE
AM151 - 1.0 TO 1.5 AMPERE SILICON MINIATURE SINGLE-PHASE BRIDGE

Full PDF Text Transcription

Click to expand full text

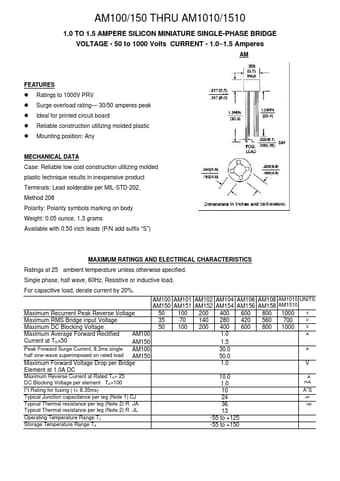

AM100/150 THRU AM1010/1510 1.0 TO 1.5 AMPERE SILICON MINIATURE SINGLE-PHASE BRIDGE VOLTAGE - 50 to 1000 Volts CURRENT - 1.0~1.5 Amperes AM FEATURES l Ratings to 1000V PRV l Surge overload rating— 30/50 amperes peak l Ideal for printed circuit board l Reliable construction utilizing molded plastic l Mounting position: Any MECHANICAL DATA Case: Reliable low cost construction utilizing molded plastic technique results in inexpensive product Terminals: Lead solderable per MIL-STD-202, Method 208 Polarity: Polarity symbols marking on body Weight: 0.05 ounce, 1.3 grams Available with 0.50 inch leads (P/N add suffix “S”) MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25 ambient temperature unless otherwise specified. Single phase, half wave, 60Hz, Resistive or inductive load.
