AM1011-070

RF & MICROWAVE TRANSISTORS L-BAND AVIONICS APPLICATIONS

AM1011-070 General Description

The AM1011-070 device is a high power Class C transistor specifically designed for L-Band Avionics transponder/interrogator pulsed output and driver applications. This device is capable of operation over a wide range of pulse widths, duty cycles and temperatures and is capable of withstanding severe.

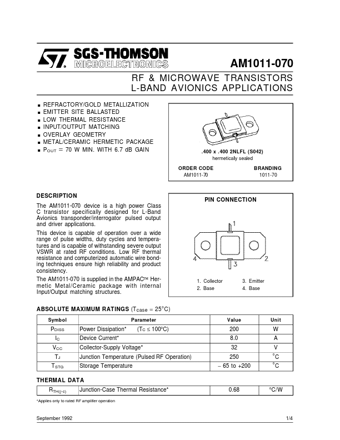

AM1011-070 Datasheet (42.02 KB)

Preview of AM1011-070 PDF

Datasheet Details

Part number:

AM1011-070

Manufacturer:

STMicroelectronics ↗

File Size:

42.02 KB

Description:

Rf & microwave transistors l-band avionics applications.
AM1011-070 RF & MICROWAVE TRANSISTORS L-BAND AVIONICS APPLICATIONS REFRACTORY/GOLD METALLIZATION EMITTER SITE BALLASTED LOW THERMAL RESISTANCE INP.
