AM1011-300 - RF & MICROWAVE TRANSISTORS AVIONICS APPLICATIONS

📥 Download Datasheet

Datasheet preview – AM1011-300

Datasheet Details

Part number AM1011-300
Manufacturer STMicroelectronics
File Size 57.72 KB
Description RF & MICROWAVE TRANSISTORS AVIONICS APPLICATIONS
Datasheet download datasheet AM1011-300 Datasheet
Additional preview pages of the AM1011-300 datasheet.

📁 Similar Datasheet

  • AM101 - 1.0 AMPERE SILICON MINIATURE SINGLE-PHASE BRIDGES (PAN JIT)
  • AM101 - 1.0 TO 1.5 AMPERE SILICON MINIATURE SINGLE-PHASE BRIDGE (TRSYS)
  • AM101 - Silicon Miniature Single-Phase Bridge (Comchip Technology)
  • AM1010 - 1.0 TO 1.5 AMPERE SILICON MINIATURE SINGLE-PHASE BRIDGE (TRSYS)
  • AM1010 - Silicon Miniature Single-Phase Bridge (Comchip Technology)
  • AM1010 - 1.0 AMPERE SILICON MINIATURE SINGLE-PHASE BRIDGES (PAN JIT)
  • AM1010-G - Silicon Miniature Single-Phase Bridge (Comchip Technology)
  • AM1010N - 100V N-Channel MOSFET (AXElite)
  • AM100 - 1.0 AMPERE SILICON MINIATURE SINGLE-PHASE BRIDGES (PAN JIT)
  • AM100 - 1.0 TO 1.5 AMPERE SILICON MINIATURE SINGLE-PHASE BRIDGE (TRSYS)
Other Datasheets by STMicroelectronics
  • AM1011-070 - RF & MICROWAVE TRANSISTORS L-BAND AVIONICS APPLICATIONS
  • AM1011-075 - L-BAND AVIONICS APPLICATIONS RF & MICROWAVE TRANSISTORS
  • AM1011-400 - L-BAND AVIONICS APPLICATIONS RF & MICROWAVE TRANSISTORS
  • AM1011-500 - RF & MICROWAVE TRANSISTORS AVIONICS APPLICATIONS
  • AM1214-100 - L-BAND RADAR APPLICATIONS RF & MICROWAVE TRANSISTORS
  • AM1214-175 - RF & MICROWAVE TRANSISTORS
  • AM1214-200 - L-BAND RADAR APPLICATIONS RF & MICROWAVE TRANSISTORS
  • AM1214-300 - RF & MICROWAVE TRANSISTORS

Full PDF Text Transcription

Click to expand full text

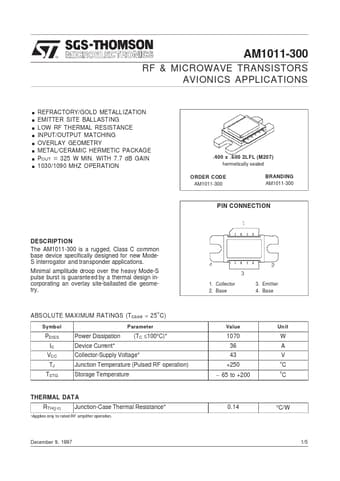

AM1011-300 RF & MICROWAVE TRANSISTORS AVIONICS APPLICATIONS ........ REFRACTORY/GOLD METALLIZATION EMITTER SITE BALLASTING LOW RF THERMAL RESISTANCE INPUT/OUTPUT MATCHING OVERLAY GEOMETRY METAL/CERAMIC HERMETIC PACKAGE POUT = 325 W MIN. WITH 7.7 dB GAIN 1030/1090 MHZ OPERATION .400 x .600 2LFL (M207) hermetically sealed O RDER CODE AM1011-300 BRANDING AM1011-300 PIN CONNECTION DE SC RI P TI O N The AM1011-300 is a rugged, Class C common base device specifically designed for new ModeS interrogator and transponder applications. Minimal amplitude droop over the heavy Mode-S pulse burst is guarante ed by a thermal design incorporating an overlay site-ballasted die geometry. 1. Collector 2. Base 3. Emitter 4.
