AM1011-500 - RF & MICROWAVE TRANSISTORS AVIONICS APPLICATIONS

📥 Download Datasheet

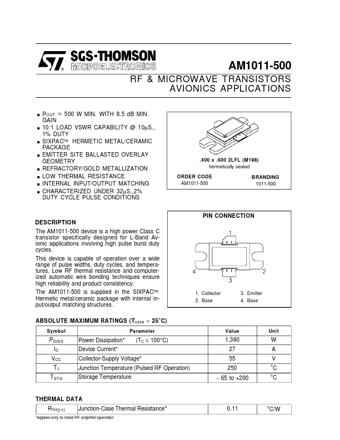

Datasheet preview – AM1011-500

Datasheet Details

Part number AM1011-500
Manufacturer STMicroelectronics
File Size 52.71 KB
Description RF & MICROWAVE TRANSISTORS AVIONICS APPLICATIONS
Datasheet download datasheet AM1011-500 Datasheet
Additional preview pages of the AM1011-500 datasheet.

📁 Similar Datasheet

  • AM101 - 1.0 AMPERE SILICON MINIATURE SINGLE-PHASE BRIDGES (PAN JIT)
  • AM101 - 1.0 TO 1.5 AMPERE SILICON MINIATURE SINGLE-PHASE BRIDGE (TRSYS)
  • AM101 - Silicon Miniature Single-Phase Bridge (Comchip Technology)
  • AM1010 - 1.0 TO 1.5 AMPERE SILICON MINIATURE SINGLE-PHASE BRIDGE (TRSYS)
  • AM1010 - Silicon Miniature Single-Phase Bridge (Comchip Technology)
  • AM1010 - 1.0 AMPERE SILICON MINIATURE SINGLE-PHASE BRIDGES (PAN JIT)
  • AM1010-G - Silicon Miniature Single-Phase Bridge (Comchip Technology)
  • AM1010N - 100V N-Channel MOSFET (AXElite)
  • AM100 - 1.0 AMPERE SILICON MINIATURE SINGLE-PHASE BRIDGES (PAN JIT)
  • AM100 - 1.0 TO 1.5 AMPERE SILICON MINIATURE SINGLE-PHASE BRIDGE (TRSYS)
Other Datasheets by STMicroelectronics
  • AM1011-070 - RF & MICROWAVE TRANSISTORS L-BAND AVIONICS APPLICATIONS
  • AM1011-075 - L-BAND AVIONICS APPLICATIONS RF & MICROWAVE TRANSISTORS
  • AM1011-300 - RF & MICROWAVE TRANSISTORS AVIONICS APPLICATIONS
  • AM1011-400 - L-BAND AVIONICS APPLICATIONS RF & MICROWAVE TRANSISTORS
  • AM1214-100 - L-BAND RADAR APPLICATIONS RF & MICROWAVE TRANSISTORS
  • AM1214-175 - RF & MICROWAVE TRANSISTORS
  • AM1214-200 - L-BAND RADAR APPLICATIONS RF & MICROWAVE TRANSISTORS
  • AM1214-300 - RF & MICROWAVE TRANSISTORS

Full PDF Text Transcription

Click to expand full text
AM1011-500 RF & MICROWAVE TRANSISTORS AVIONICS APPLICATIONS . POUT = 500 W MIN. WITH 8.5 dB MIN. GAIN . 10:1 LOAD VSWR CAPABILITY @ 10µS., 1% DUTY . SIXPAC™ HERMETIC METAL/CERAMIC PACKAGE . EMITTER SITE BALLASTED OVERLAY GEOMETRY . REFRACTORY/GOLD METALLIZATION . LOW THERMAL RESISTANCE . INTERNAL INPUT/OUTPUT MATCHING . CHARACTERIZED UNDER 32µS.,2% DUTY CYCLE PULSE CONDITIONS .400 x .600 2LFL (M198) hermetically sealed ORDER CODE AM1011-500 BRANDING 1011-500 DE S CRI P T IO N The AM1011-500 device is a high power Class C transistor specifically designed for L-Band Avionic applications involving high pulse burst duty cycles. This device is capable of operation over a wide range of pulse widths, duty cycles, and temperatures.
