AM1011-075 - L-BAND AVIONICS APPLICATIONS RF & MICROWAVE TRANSISTORS

Datasheet Summary

Description

The AM1011-075 device is a high power Class C transistor specifically designed for L-Band Avionics transponder/interrogator pulsed output and driver applications.

📥 Download Datasheet

Datasheet preview – AM1011-075

Datasheet Details

Part number AM1011-075
Manufacturer STMicroelectronics
File Size 64.38 KB
Description L-BAND AVIONICS APPLICATIONS RF & MICROWAVE TRANSISTORS
Datasheet download datasheet AM1011-075 Datasheet
Additional preview pages of the AM1011-075 datasheet.

📁 Similar Datasheet

  • AM101 - 1.0 AMPERE SILICON MINIATURE SINGLE-PHASE BRIDGES (PAN JIT)
  • AM101 - 1.0 TO 1.5 AMPERE SILICON MINIATURE SINGLE-PHASE BRIDGE (TRSYS)
  • AM101 - Silicon Miniature Single-Phase Bridge (Comchip Technology)
  • AM1010 - 1.0 TO 1.5 AMPERE SILICON MINIATURE SINGLE-PHASE BRIDGE (TRSYS)
  • AM1010 - Silicon Miniature Single-Phase Bridge (Comchip Technology)
  • AM1010 - 1.0 AMPERE SILICON MINIATURE SINGLE-PHASE BRIDGES (PAN JIT)
  • AM1010-G - Silicon Miniature Single-Phase Bridge (Comchip Technology)
  • AM1010N - 100V N-Channel MOSFET (AXElite)
  • AM100 - 1.0 AMPERE SILICON MINIATURE SINGLE-PHASE BRIDGES (PAN JIT)
  • AM100 - 1.0 TO 1.5 AMPERE SILICON MINIATURE SINGLE-PHASE BRIDGE (TRSYS)
Other Datasheets by STMicroelectronics
  • AM1011-070 - RF & MICROWAVE TRANSISTORS L-BAND AVIONICS APPLICATIONS
  • AM1011-300 - RF & MICROWAVE TRANSISTORS AVIONICS APPLICATIONS
  • AM1011-400 - L-BAND AVIONICS APPLICATIONS RF & MICROWAVE TRANSISTORS
  • AM1011-500 - RF & MICROWAVE TRANSISTORS AVIONICS APPLICATIONS
  • AM1214-100 - L-BAND RADAR APPLICATIONS RF & MICROWAVE TRANSISTORS
  • AM1214-175 - RF & MICROWAVE TRANSISTORS
  • AM1214-200 - L-BAND RADAR APPLICATIONS RF & MICROWAVE TRANSISTORS
  • AM1214-300 - RF & MICROWAVE TRANSISTORS

Full PDF Text Transcription

Click to expand full text

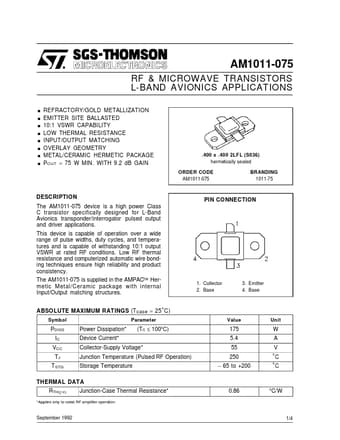

AM1011-075 RF & MICROWAVE TRANSISTORS L-BAND AVIONICS APPLICATIONS . . . . . . . . REFRACTORY/GOLD METALLIZATION EMITTER SITE BALLASTED 10:1 VSWR CAPABILITY LOW THERMAL RESISTANCE INPUT/OUTPUT MATCHING OVERLAY GEOMETRY METAL/CERAMIC HERMETIC PACKAGE POUT = 75 W MIN. WITH 9.2 dB GAIN .400 x .400 2LFL (S036) hermetically sealed ORDER CODE AM1011-075 BRANDING 1011-75 DESCRIPTION The AM1011-075 device is a high power Class C transistor specifically designed for L-Band Avionics transponder/interrogator pulsed output and driver applications. This device is capable of operation over a wide range of pulse widths, duty cycles, and temperatures and is capable of withstanding 10:1 output VSWR at rated RF conditions.
