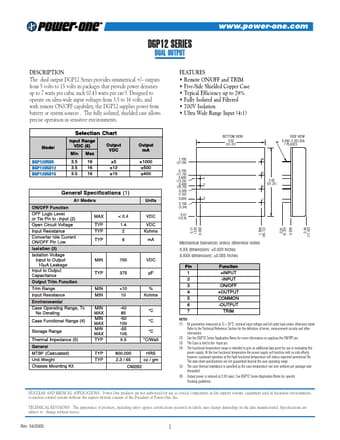

Description
The dual output DGP12 Series provides symmetrical +/
outputs from 5 volts to 15 volts in packages that provide power densities up to 7 watts per cubic inch (0.43 watts per cm3).
Features
- Remote ON/OFF and TRIM.
- Five-Side Shielded Copper Case.
- Typical Efficiency up to 78%.
- Fully Isolated and Filtered.
- 700V Isolation.
- Ultra Wide Range Input (4:1)
BOTTOM VIEW 2.02 (51.31)
SIDE VIEW 0.040 (1.02) DIA 7 PLACES
1.100 (27.94) 0.700 (17.78) 0.600 (15.24) 0.400 (10.16) 0.300 (7.62) 0.000 0.100 (2.54) 0.51 (13.0)
4
5 1 2 6 2.02 (51.31)
3
7
0.25 (6.35)
0.11 (2.8) 0.000
1.800 (45.72)
Mechanical tolerances unless otherwise note.
