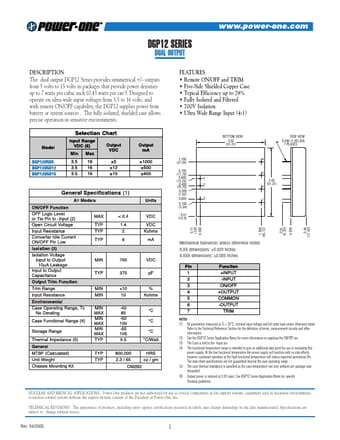

DGP12U5D5 Datasheet, Output, Power-One

DGP12U5D5 Features

• Output
• Remote ON/OFF and TRIM
• Five-Side Shielded Copper Case
• Typical Efficiency up to 78%
• Fully Isolated and Filtered
• 700V Isolation

PDF File Details

Part number:

DGP12U5D5

Manufacturer:

Power-One

File Size:

798.89kb

Download:

📄 Datasheet

Description:

Dual output. The dual output DGP12 Series provides symmetrical +/  – outputs from 5 volts to 15 volts in packages that provide power

DGP12U5D5 Application

• Applications Power-One products are not authorized for use as critical components in life support systems, equipment used in hazardous environments,
