Part number	DSP1N5S5
Manufacturer	Power-One
File Size	227.08 KB
Description	SINGLE OUTPUT
Datasheet	DSP1N5S5 Datasheet
Note	This datasheet PDF includes multiple part numbers: DSP1N5S5, DSP1N5S5_Power. Please refer to the document for exact specifications by model.

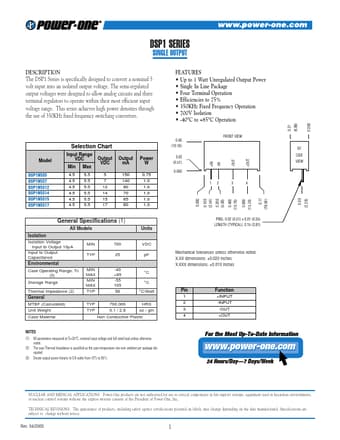

Additional preview pages of the DSP1N5S5 datasheet.

Product details

Description

The DSP1 Series is specifically designed to convert a nominal 5 volt input into an isolated output voltage.

Features

Up to 1 Watt Unregulated Output Power.
Single In Line Package.
Four Terminal Operation.
Efficiencies to 75%.
350KHz Fixed Frequency Operation.
700V Isolation.
-40°C to +85°C Operation FRONT VIEW 0.27 (6.86) Selection Chart Model DSP1N5S5 DSP1N5S7 DSP1N5S12 DSP1N5S14 DSP1N5S15 DSP1N5S17 Input Range VDC Mi n 4.5 4.5 4.5 4.5 4.5 4.5 Max 5.5 5.5 5.5 5.5 5.5 5.5 Output VDC 5 7 12 14 15 17 Output mA 150 140 80 70 65 60 Power W 0.75 1.0.
