DSP1N5D12, DSP1N5D12_Power, DUAL OUTPUT

DSP1 SERIES DUAL OUTPUT .
The DSP1 Series is specifically designed to convert a nominal 5 volt input into two isolated output voltages.

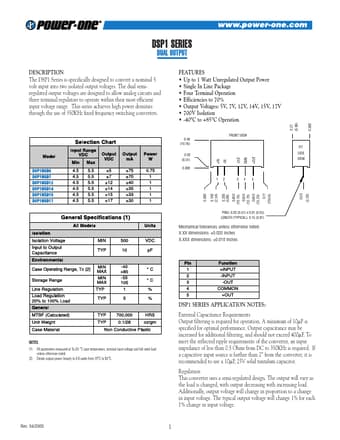

datasheet Preview Page 1 from Datasheet4u.com

DSP1N5D12_Power-One.pdf

DSP1N5D12 Datasheet Preview — This datasheet PDF includes multiple part numbers: DSP1N5D12, DSP1N5D12_Power. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

DSP1N5D12, DSP1N5D12_Power

Manufacturer:

Power-One

File Size:

236.14 KB

Description:

DUAL OUTPUT

Note:

This datasheet PDF includes multiple part numbers: DSP1N5D12, DSP1N5D12_Power.
Please refer to the document for exact specifications by model.

Features

* Up to 1 Watt Unregulated Output Power
* Single In Line Package
* Four Terminal Operation
* Efficiencies to 70%
* Output Voltages: 5V, 7V, 12V, 14V, 15V, 17V
* 700V Isolation
* -40°C to +85°C Operation FRONT VIEW 0.40 (10.16) RT +OUT -OUT CMN

Applications

* Power-One products are not authorized for use as critical components in life support systems, equipment used in hazardous environments, or nuclear control systems without the express written consent of the President of Power-One, Inc. TECHNICAL REVISIONS The appearance of products, including safety
