DSP1N5D14 - DUAL OUTPUT

Product Overview

Power-One

📥 Download Datasheet

DSP1N5D14 DUAL OUTPUT by Power-One - Datasheet Preview — Datasheet preview – DSP1N5D14

Datasheet Details

Part number	DSP1N5D14
Manufacturer	Power-One
File Size	236.14 KB
Description	DUAL OUTPUT
Datasheet	DSP1N5D14 Datasheet
Note	This datasheet PDF includes multiple part numbers: DSP1N5D14, DSP1N5D14_Power. Please refer to the document for exact specifications by model.

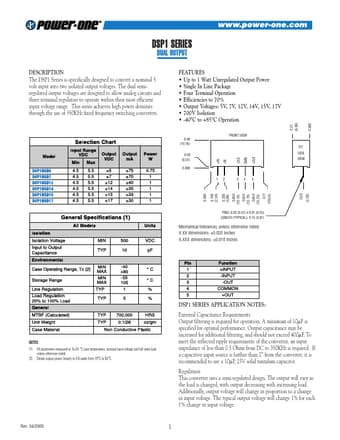

Additional preview pages of the DSP1N5D14 datasheet.

Product details

Description

The DSP1 Series is specifically designed to convert a nominal 5 volt input into two isolated output voltages.

Features

Up to 1 Watt Unregulated Output Power.
Single In Line Package.
Four Terminal Operation.
Efficiencies to 70%.
Output Voltages: 5V, 7V, 12V, 14V, 15V, 17V.
700V Isolation.
-40°C to +85°C Operation FRONT VIEW 0.40 (10.16) RT +OUT -OUT CMN 0.02 (0.51) 0.000 1 2 3 4 5 SIDE +IN -IN VIEW 0.27 (6.86) 0.77 0.000 0.09 0.200 (5.08) 0.100 (2.54) 0.400 (10.16) 0.500 (12.70) PINS: 0.02 (0.51) x 0.01 (0.25) LENGTH (.
