DSP1N5D15

DUAL OUTPUT

DSP1N5D15 Features

* Up to 1 Watt Unregulated Output Power

* Single In Line Package

* Four Terminal Operation

* Efficiencies to 70%

* Output Voltages: 5V, 7V, 12V, 14V, 15V, 17V

* 700V Isolation

* -40°C to +85°C Operation FRONT VIEW 0.40 (10.16) RT +OUT -OUT CMN

DSP1N5D15 General Description

The DSP1 Series is specifically designed to convert a nominal 5 volt input into two isolated output voltages. The dual semiregulated output voltages are designed to allow analog circuits and three terminal regulators to operate within their most efficient input voltage range. This series achieves hi.

DSP1N5D15 Datasheet (236.14 KB)

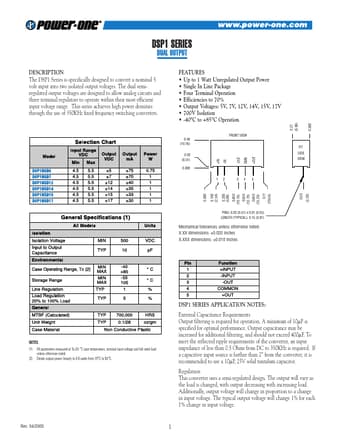

Preview of DSP1N5D15 PDF

Datasheet Details

Part number:

DSP1N5D15

Manufacturer:

Power-One

File Size:

236.14 KB

Description:

Dual output.
