PSA151.5-7iR Datasheet - Power-One

PSA151.5-7iR 1...6 A Switching Regulators

PSA, PSR Series 16 A Switching Regulators Input voltage up to 144 V DC Single output of 3.348 V DC No input to output isolation Efficiency up to 95% Low input-output differential voltage No derating over temperature Board or chassis mountable Selection chart Output Uo nom Io nom [V DC] [A] 3.3 6 5 2 5 3 5 4 5 5 5.1 2 5.1 5 12 1.5 12 2.5 12 3 15 1.5 15 2.5 15 3 24 1.5 24 2 24 2.5 36 1.2 36 2 48 1 Input voltage Ui [V DC] 535 880 880 740 735 840 735 18144.

PSA151.5-7iR Datasheet (46.94 KB)

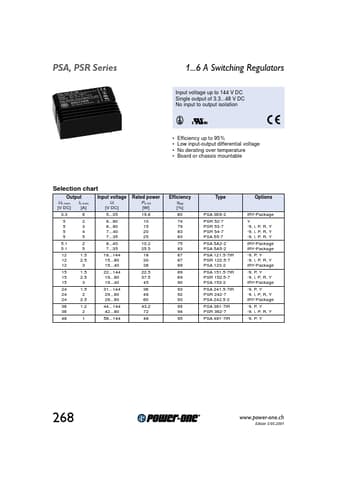

Preview of PSA151.5-7iR PDF

Datasheet Details

Part number:

PSA151.5-7iR

Manufacturer:

Power-One

File Size:

46.94 KB

Description:

1...6 a switching regulators.
