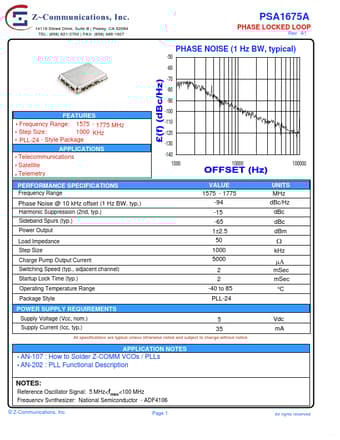

PSA1675A

PHASE LOCKED LOOP

PSA1675A Features

* Frequency Range: 1575 - 1775 MHz

* Step Size: 1000 KHz

* PLL-24 - Style Package APPLICATIONS

* Telecommunications

* Satellite

* Telemetry PERFORMANCE SPECIFICATIONS Frequency Range -100 -110 -120 -130 -140 1000 10000 100000 VALUE 1575 - 1775 -94 -1

PSA1675A General Description

NOTES: Reference Oscillator Signal: 5 MHz< <100 MHz Frequency Synthesizer: National Semiconductor - ADF4106 © Z-Communications, Inc. Page 1 All rights reserved http://www.Datasheet4U.com PHASE LOCKED LOOP VCO TUNING CURVE, typ. 1850 1800 PSA1675A PAGE 2 FREQUENCY (MHz) 1750 1700 1650 1600 1550.
