PSA10N70 700V N-ch Planar MOSFET

PIP

PSA10N70 Description

700V N-ch Planar MOSFET General .

PSA10N70 Features

* RoHS Compliant
* RDS(ON),typ. =0.80 Ω@VGS=10V
* Low Gate Charge Minimize Switching Loss

PSA10N70 Applications

* Adaptor
* Charger
* SMPS Standby Power Ordering Information Part Number Package PSP10N70 TO-220 PSA10N70 TO-220F Brand G DS GDS TO-220 TO-220F Package No to Scale Absolute Maximum Ratings TC=25℃ unless otherwise specified Symbol VDSS VGSS Parameter Drain-to-Source Volta

📥 Download Datasheet

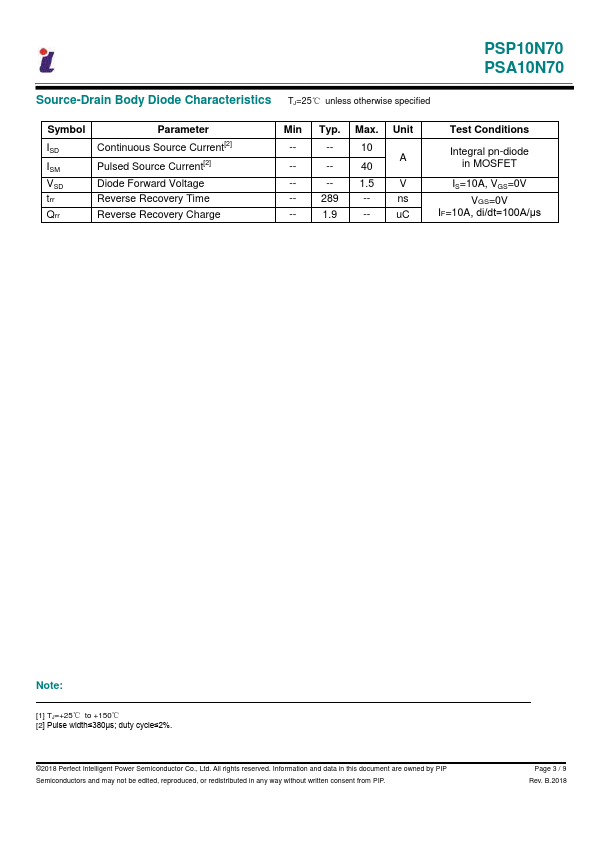

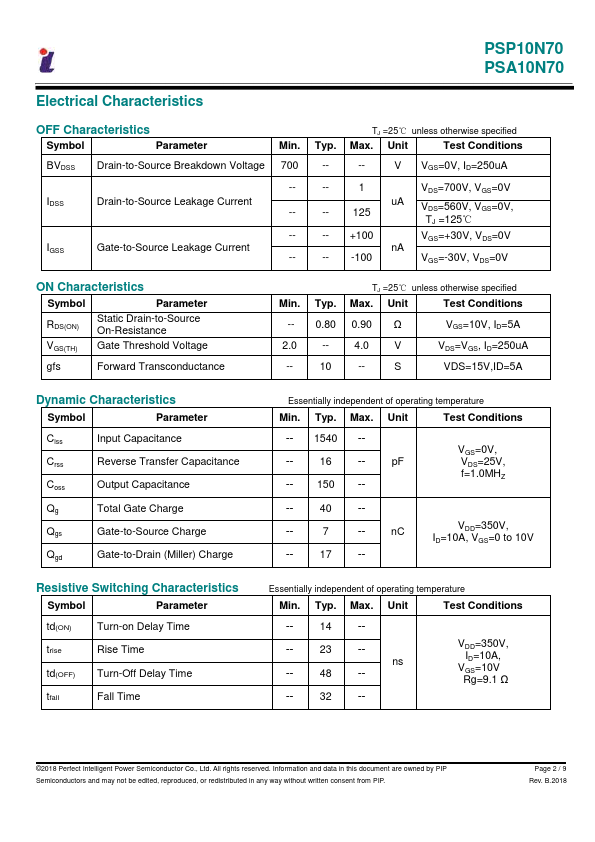

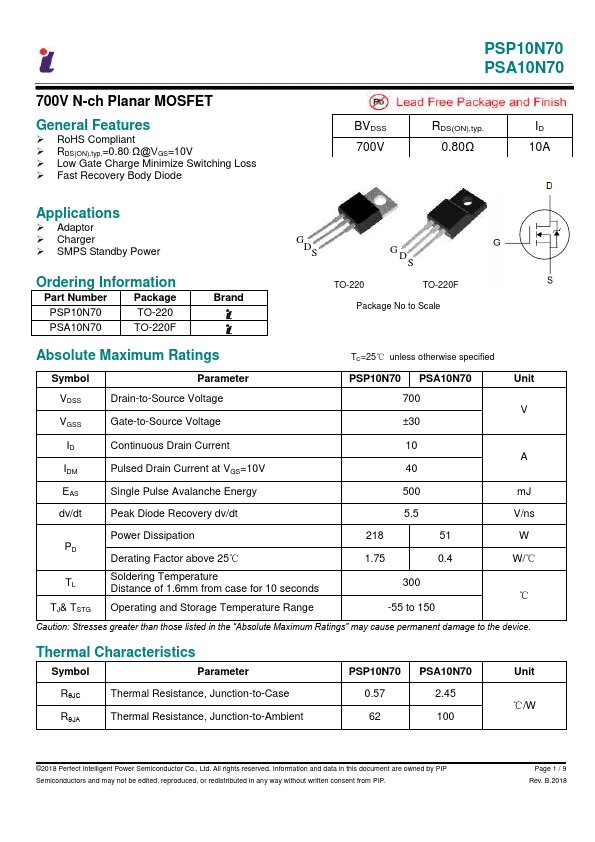

PSA10N70 Datasheet Preview — Preview of PSA10N70 PDF

Datasheet Details

Part number: PSA10N70
Manufacturer: PIP
File Size: 689.81 KB
Datasheet: PSA10N70-PIP.pdf
Description: 700V N-ch Planar MOSFET
