PFP7N60 - N-channel MOSFET

Datasheet Summary

Description

These N-channel enhancement mode field effect power transistor using Powergate semiconductor’s advanced planar stripe, DMOS technology intended for off line switch mode power supply.

Also, especially designed to minimize RDS(ON) and high rugged avalanche characteristics.

Features

  • High ruggedness.
  • RDS(ON) (Max 1.2 Ω)@VGS=10V.
  • Gate Charge (Typ. 35nC).
  • Improved dv/dt Capability.
  • 100% Avalanche Tested PFF7N60 PFP7N60 1 2 3 12 3 1. Gate 2. Drain 3. Source General.

📥 Download Datasheet

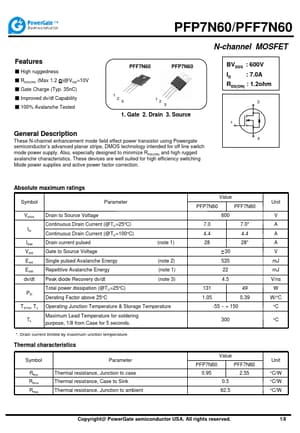

Datasheet preview – PFP7N60
