PFP4N60 Datasheet, Mosfet, PowerGate

PFP4N60 Features

  • Mosfet
  • High ruggedness
  • RDS(ON) (Max 2.3 Ω)@VGS=10V
  • Gate Charge (Typ. 27nC)
  • Improved dv/dt Capability
  • 100% Avalanche Tested 1 2 3 1 2 3 1 3 PF

PDF File Details

Part number:

PFP4N60

Manufacturer:

PowerGate

File Size:

768.53kb

Download:

📄 Datasheet

Description:

N-channel mosfet. These N-channel enhancement mode field effect power transistor is using Powergate semiconductor’s advanced planar stripe, DMOS techno

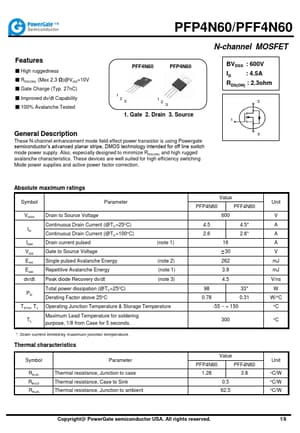

Datasheet Preview: PFP4N60 📥 Download PDF (768.53kb)
Page 2 of PFP4N60 Page 3 of PFP4N60
