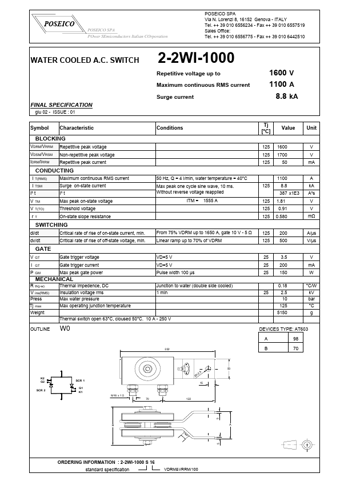

2-2WI-1000 - WATERCOOLEDA.C.SWITCH
POSEICO POSEICO SPA POwer SEmiconductors Italian COrporation POSEICO SPA Via N.
Lorenzi 8, 16152 Genova - ITALY Tel.
++ 39 010 6556234 - Fax ++ 39 010 6557519 Sales Office: Tel.
++ 39 010 6556775 - Fax ++ 39 010 6442510 WATER COOLED A.C.
SWITCH 2-2WI-1000 Repetitive voltage up to Maximum continuous RMS current Surge current 1600 V 1100 A 8.8 kA FINAL SPECIFICATION giu 02 - ISSUE : 01 Symbol Characteristic Conditions Tj [°C] 125 125 125 Value Unit BLOCKING VDRM/VRRM VDSM/VRSM IDRM/IRR
