2-2WI-1200S16 Datasheet - PowerSemiconductors

2-2WI-1200S16 WATERCOOLEDA.C.SWITCH

POSEICO POSEICO SPA POwer SEmiconductors Italian COrporation POSEICO SPA Via N. Lorenzi 8, 16152 Genova - ITALY Tel. ++ 39 010 6556234 - Fax ++ 39 010 6557519 Sales Office: Tel. ++ 39 010 6556775 - Fax ++ 39 010 6442510 WATER COOLED A.C. SWITCH 2-2WI-1200 Repetitive voltage up to Maximum continuous RMS current Surge current 1600 V 1290 A 12.5 kA FINAL SPECIFICATION giu 02 - ISSUE : 01 Symbol Characteristic Conditions Tj [°C] 125 125 125 Value Unit BLOCKING VDRM/VRRM VDSM/VRSM IDRM/IR.

2-2WI-1200S16_PowerSemiconductors.pdf

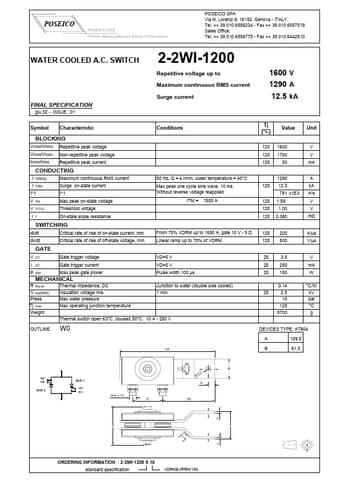

Preview of 2-2WI-1200S16 PDF

Datasheet Details

Part number:

2-2WI-1200S16

Manufacturer:

PowerSemiconductors

File Size:

108.48 KB

Description:

Watercooleda.c.switch.
