PS4508 40V 120mA Single Channel Linear LED Driver

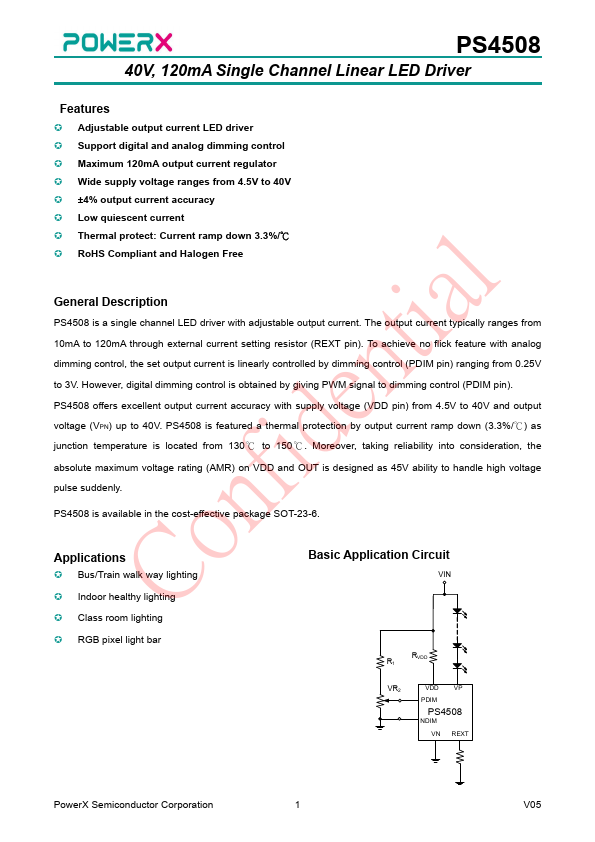

📥 Download Datasheet  Datasheet Preview Page 1

Description

PS4508 40V, 120mA Single Channel Linear LED Driver .
PS4508 is a single channel LED driver with adjustable output current.

📥 Download Datasheet

Preview of PS4508 PDF

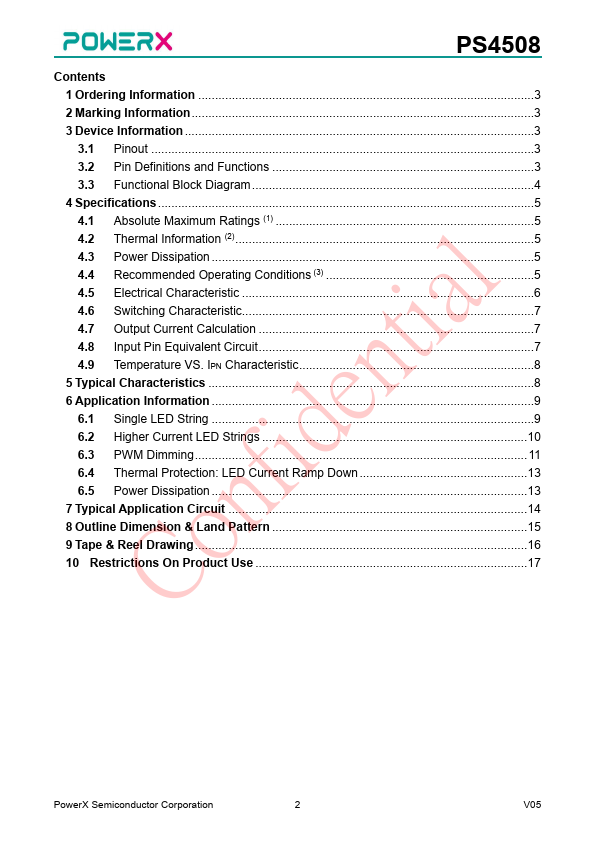

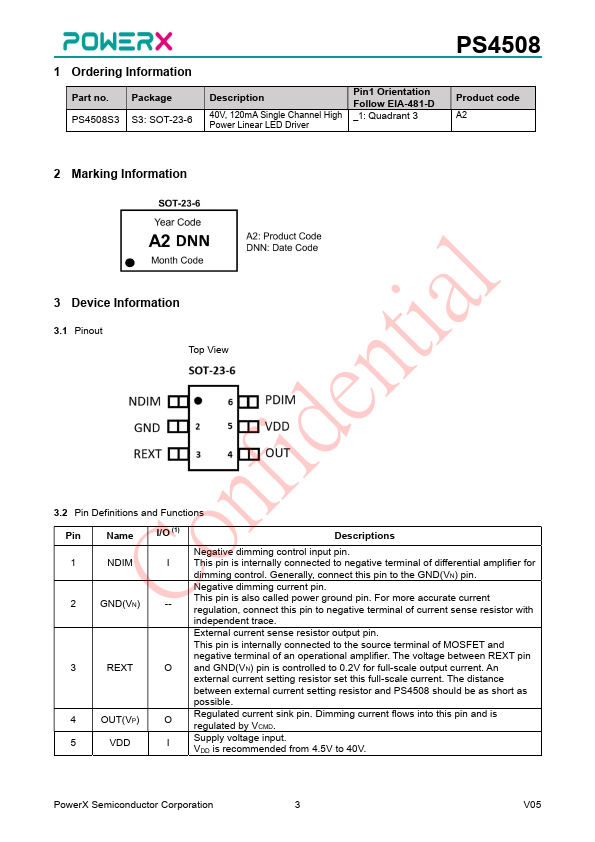

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
PS4508
Manufacturer
PowerX
File Size
1.48 MB
Datasheet
PS4508-PowerX.pdf
Description
40V 120mA Single Channel Linear LED Driver

Features

*  Adjustable output current LED driver  Support digital and analog dimming control  Maximum 120mA output current regulator  Wide supply voltage ranges from 4.5V to 40V  ±4% output current accuracy Confidential  Lowquiescentcurrent  Thermal protect: Current ramp down 3.3%/℃  RoHS Complia

Applications

*  Bus/Train walk way lighting  Indoor healthy lighting Basic Application Circuit VIN  Class room lighting  RGB pixel light bar R1 RVDD VR2 VDD VP PDIM PS4508 NDIM VN REXT PowerX Semiconductor Corporation 1 V05 PS4508 Contents 1 Ordering Information 3 2 Marking Information3 3 Device
