PS4509 60V 1.5A 3-Channel Constant Current LED Driver

📥 Download Datasheet  Datasheet Preview Page 1

Description

PS4509 60V, 1.5A 3-Channel Constant Current LED Driver .
PS4509 is a 3-channel LED driver with constant current regulator.

📥 Download Datasheet

Preview of PS4509 PDF

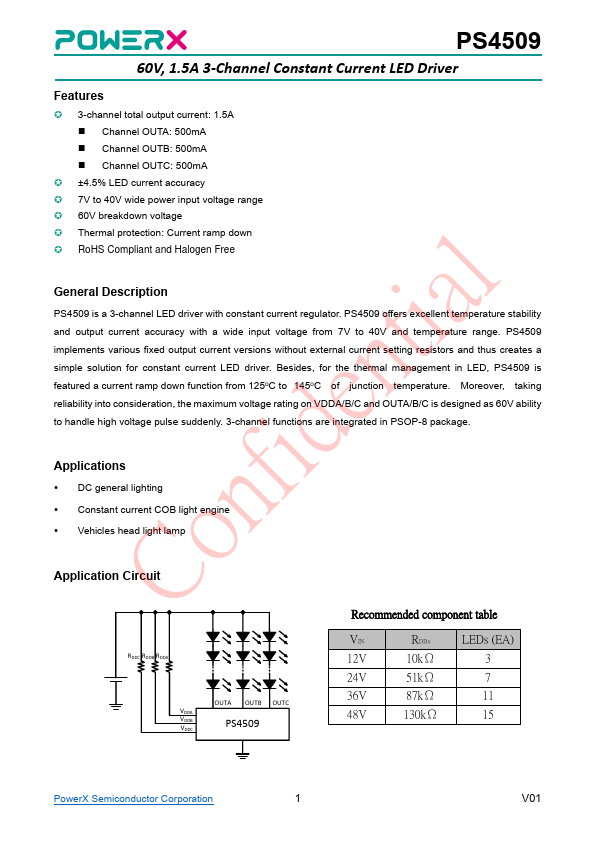

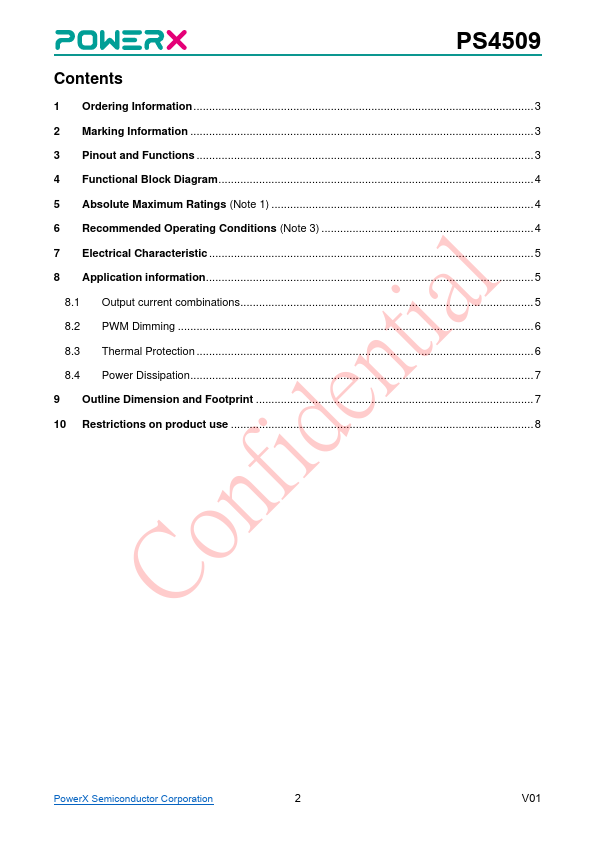

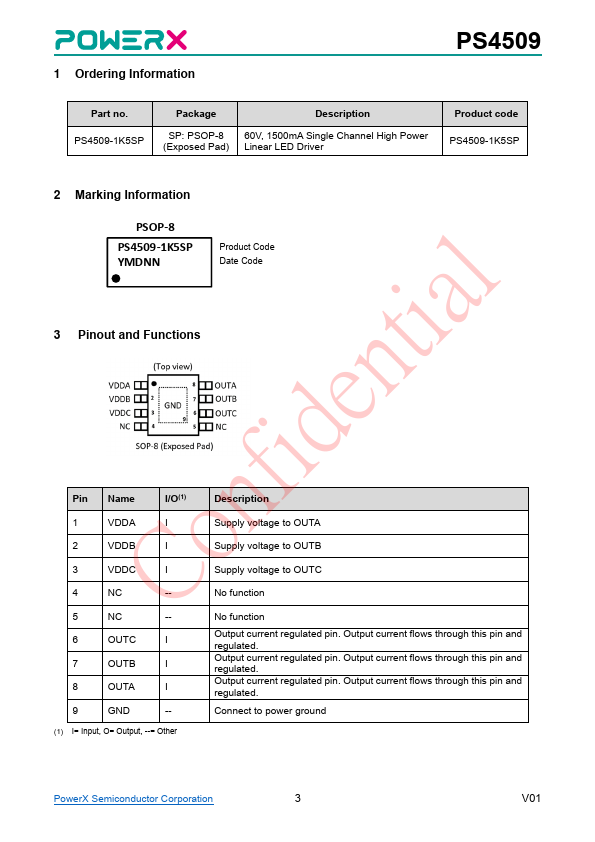

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
PS4509
Manufacturer
PowerX
File Size
620.21 KB
Datasheet
PS4509-PowerX.pdf
Description
60V 1.5A 3-Channel Constant Current LED Driver

Features

*  3-channel total output current: 1.5A
* Channel OUTA: 500mA
* Channel OUTB: 500mA
* Channel OUTC: 500mA  ±4.5% LED current accuracy  7V to 40V wide power input voltage range Confidential  60Vbreakdownvoltage  Thermal protection: Current ramp down  RoHS Compliant and Halogen Free Ge

Applications

* DC general lighting
* Constant current COB light engine
* Vehicles head light lamp Application Circuit Recommended component table RDDC RDDB RDDA OUTA OUTB OUTC VDDA VDDB VDDC PS4509 VIN RDDx LEDs (EA) 12V 10kΩ 3 24V 51kΩ 7 36V 87kΩ 11 48V 130kΩ 15 PowerX Semicond
