PS4506 - 60V 800mA 3-Channel Constant Current LED Driver

PS4506 Description

PS4506 60V, 800mA 3-Channel Constant Current LED Driver .
PS4506 is a 3-channel LED driver with constant current regulator.

PS4506 Features

*  3-channel total output current: 800mA
* Channel OUTA: 200mA
* Channel OUTB: 200mA
* Channel OUTC: 400mA  ±4.5% LED current accuracy  7V to 40V wide power input voltage range Confidential  60Vbreakdownvoltage  Thermal protection: Current ramp down  RoHS Compliant and Halogen

PS4506 Applications

* DC general lighting
* Constant current COB light engine Application Circuit RDDC RDDB RDDA VIN OUTA OUTB OUTC VDDA VDDB VDDC PS4506 Recommended component table VIN RDD(A/B) 12V 20kΩ 24V 100kΩ 36V 180kΩ 48V 260kΩ RDDC 10kΩ 51kΩ 87kΩ 130kΩ LEDs (EA) 3 7 11 15 PowerX Semico

📥 Download Datasheet

Preview of PS4506 PDF

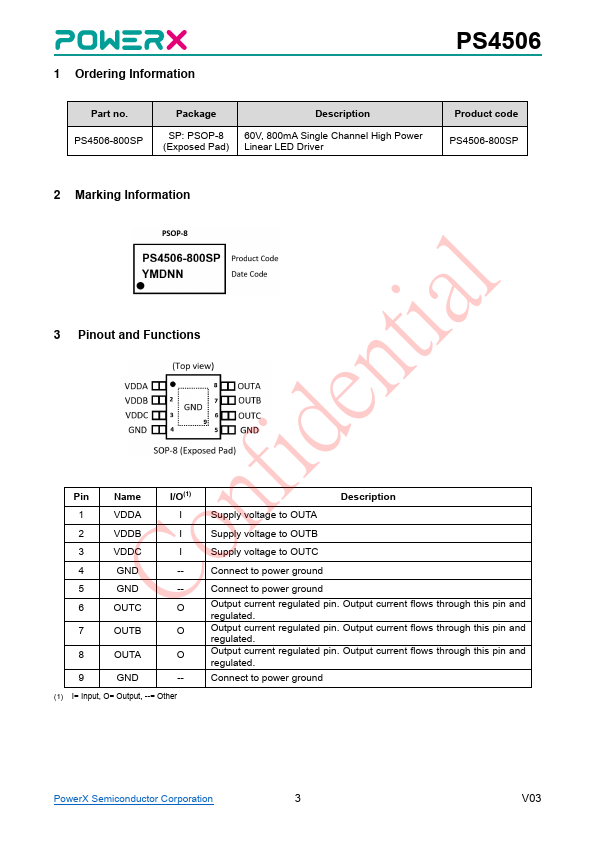

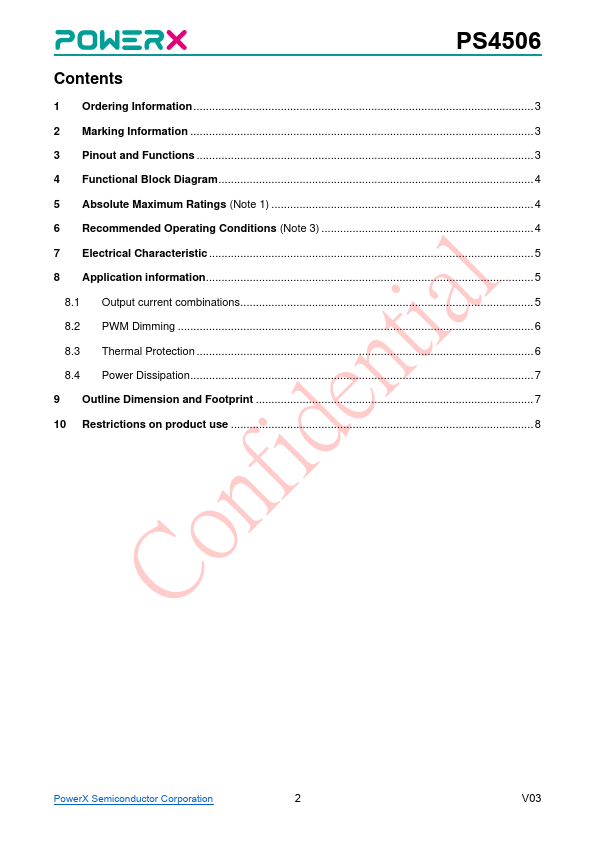

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
PS4506
Manufacturer
PowerX
File Size
617.40 KB
Datasheet
PS4506-PowerX.pdf
Description
60V 800mA 3-Channel Constant Current LED Driver
