CM1200HA-34H Datasheet - Powerex Power Semiconductors

CM1200HA-34H IGBT Module

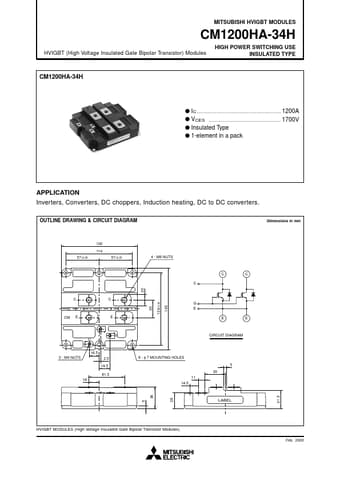

MITSUBISHI HVIGBT MODULES CM1200HA-34H HVIGBT (High Voltage Insulated Gate Bipolar Transistor) Modules HIGH POWER SWITCHING USE INSULATED TYPE CM1200HA-34H q IC 1200A q VCES 1700V q Insulated Type q 1-element in a pack APPLICATION Inverters, Converters, DC choppers, Induction heating, DC to DC converters. OUTLINE DRAWING & CIRCUIT DIAGRAM Dimensions in mm 130 114 57±0.25 57±0.25 4 - M8 NUTS C C 20 C C C 124±0.25 140 30 G E E E CM E E E C G CIRCUIT DIAGRAM 16.5 3 - M4 NUTS 2.5 .

CM1200HA-34H Datasheet (43.78 KB)
